Cables

1-CYKCY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC copper energy cables, screened

Low Voltage Cables 0,6/1 kV

The cables are designed for fixed distribution of electricity in the ground or in the outdoor environment.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE), round stranded (RM) resp. sector-shaped stranded (SM)
  • 2
    Core insulation (PVC), cores stranded
  • 3
    Inner covering (EPDM or plastic tape)
  • 4
    Sheat (PVC black)
  • 5
    Screen (Cu tape)
  • 6
    Inner covering (plastic tape)
  • 7
    Outer covering (PVC black, UV-resistant)

Technical Data

Standard: TP PRAKAB 03/07
Certificate: EZÚ Czech Republic
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0.6/1 kV
Bending radius (min.):
  • 12 x Ø of cable up to 15 mm
  • 15 x Ø of cable over 15 mm
Fire properties:
  • ČSN EN 60332-1-2: self-extinguishing
  • CPR: Eca
Core identification:
  • ČSN 33 0166 ed. 2
  • ČSN EN 50334
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

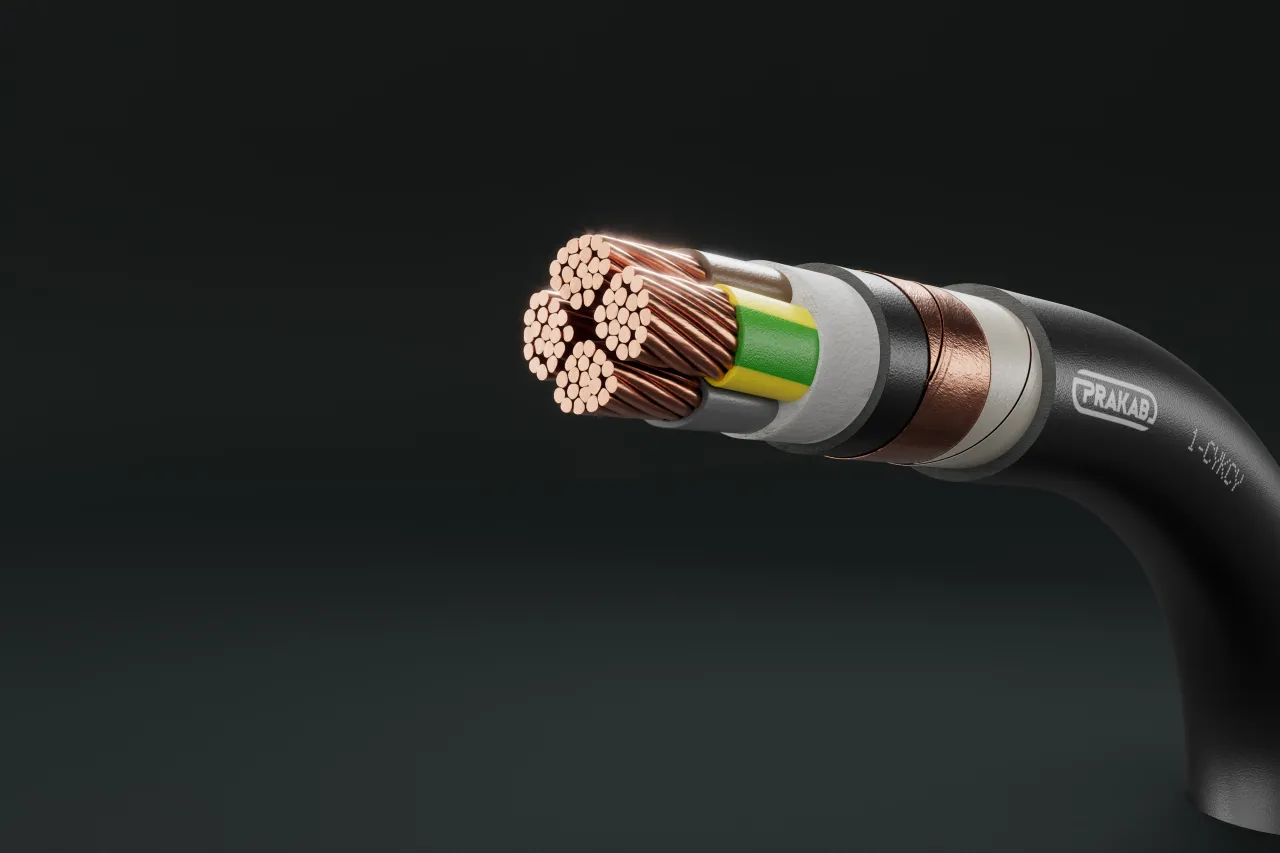

Cable image - 1-CYKCY
+
-

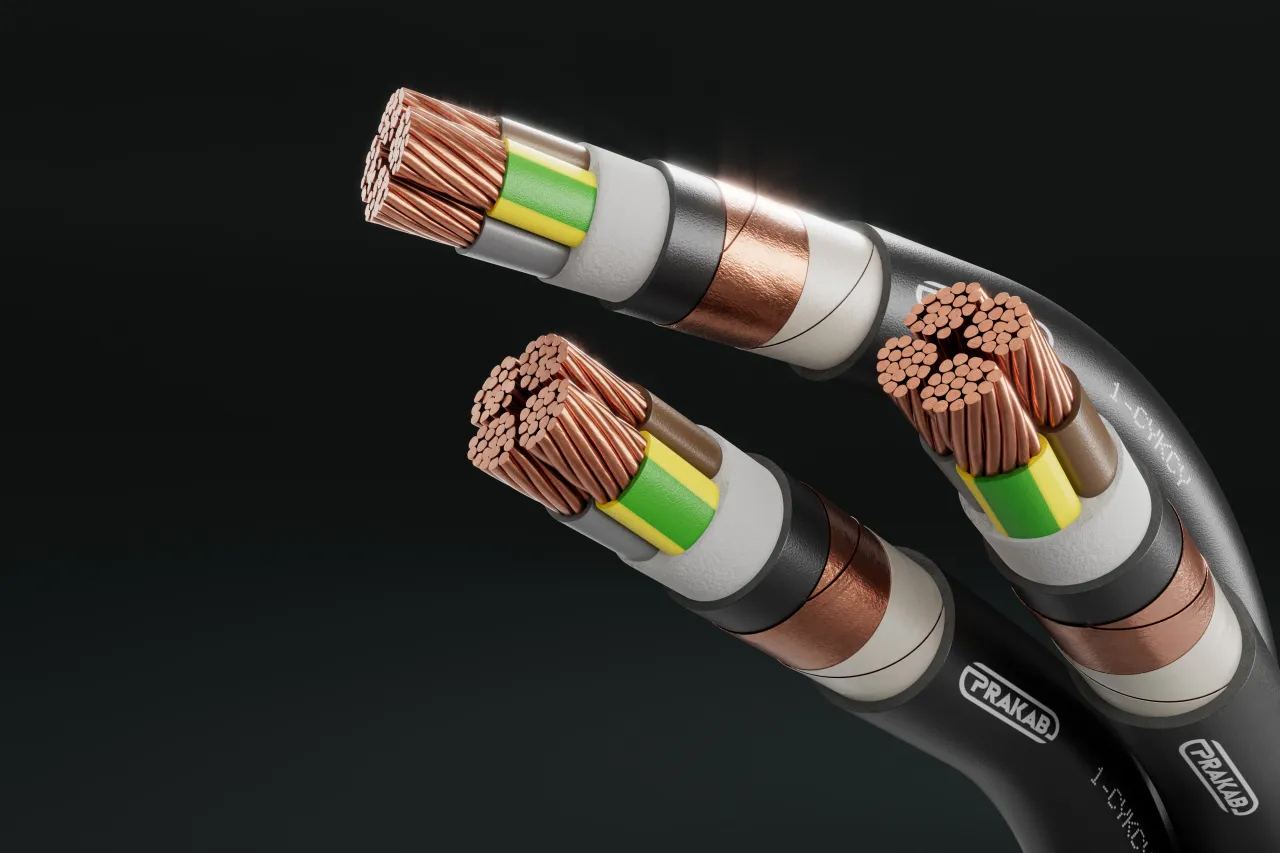

Cable image - 1-CYKCY
+
-
Cable image - 1-CYKCY
+
-

Contact us

Are you interested in this product?

Ing. Dan Bachtík

Product supervisor

+420734366090
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.1
32
20
12.1
233
3 x 1.5 RE
12.1
27
19.5
12.6
258
4 x 1.5 RE
12.1
27
19.5
13.3
286
5 x 1.5 RE
12.1
19
14.5
14.6
335
7 x 1.5 RE
12.1
16
12.5
15.5
397
12 x 1.5 RE
12.1
12.5
10
19.3
589
19 x 1.5 RE
12.1
10.5
8.5
22.6
818
24 x 1.5 RE
12.1
9
7.5
25.6
1027
2 x 2.5 RE
7.41
42
27
12.8
271
3 x 2.5 RE
7.41
36
26
13.8
315
4 x 2.5 RE
7.41
36
26
14.6
359
5 x 2.5 RE
7.41
25
19.5
15.6
409
7 x 2.5 RE
7.41
21.5
16
16.5
484
12 x 2.5 RE
7.41
17
13
21.2
760
19 x 2.5 RE
7.41
14
11
24.5
1056
24 x 2.5 RE
7.41
12.5
10
28.7
1383
2 x 4 RE
4.61
54
37
14.9
362
3 x 4 RE
4.61
47
34
15.2
397
4 x 4 RE
4.61
47
34
16.9
485
5 x 4 RE
4.61
32
25.5
18.1
549
7 x 4 RE
4.61
27.5
22
19.4
673
2 x 6 RE
3.08
68
48
15.9
431
3 x 6 RE
3.08
59
44
16.5
483
4 x 6 RE
3.08
59
44
18
583
5 x 6 RE
3.08
41
32
19
659
7 x 6 RE
3.08
34.5
27.5
20.8
843
2 x 10 RE
1.83
90
66
17.3
542
3 x 10 RE
1.83
79
60
17.8
634
4 x 10 RE
1.83
79
60
19.9
779
5 x 10 RE
1.83
55
44
21.1
945
3 x 16 RE
1.15
102
80
20.1
870
4 x 16 RE
1.15
102
80
22.5
1079
5 x 16 RE
1.15
71
59
24.4
1285
4 x 25 RM
0.727
132
105
27.9
1780
5 x 25 RM
0.727
92
73
30.5
2170
3 x 35 RM/RM
0.524 / 0.727
159
129
30.6
2170
4 x 35 RM
0.524
159
129
30.6
2220
5 x 35 RM
0.524
110
89
33.2
2720
3 x 50 SM/SM
0.387 / 0.524
188
157
32
2470
4 x 50 RM
0.387
188
157
35.2
3180
4 x 50 SM
0.387
188
157
32
2590
3 x 70 SM/RM
0.268 / 0.268
236
199
35.4
3260
4 x 70 RM
0.268
236
199
40.1
4020
4 x 70 SM
0.268
236
199
35.4
3470
3 x 95 SM/RM
0.193 / 0.268
280
246
40.8
4170
4 x 95 RM
0.193
280
246
45.5
5300
4 x 95 SM
0.193
280
246
40.8
4600
4 x 95 SM/RM
0.193 / 0.268
280
246
40.8
4350
3 x 120 SM/RM
0.153 / 0.387
317
285
44.2
4920
3 x 120 SM/RM
0.153 / 0.268
317
285
44.2
5170
4 x 120 SM
0.153
317
285
44.2
5580
3 x 150 SM/RM
0.124 / 0.268
359
326
48.3
6020
4 x 150 SM
0.124
359
326
48.3
6750
3 x 185 SM/RM
0.0991 / 0.193
401
374
54.9
8410
4 x 185 SM
0.0991
401
374
54.9
7590
3 x 240 SM/RM
0.0754 / 0.124
464
445
61
9730
4 x 240 SM
0.0754
464
445
61
10760

Technical changes reserved.

All figures are therefore without guarantee.
