PVC/PVC aluminium underground medium voltage cable, screened
Medium Voltage Cables up to 36 kV
The cables are designed for fixed distribution of electricity in the ground or in the outdoor environment.

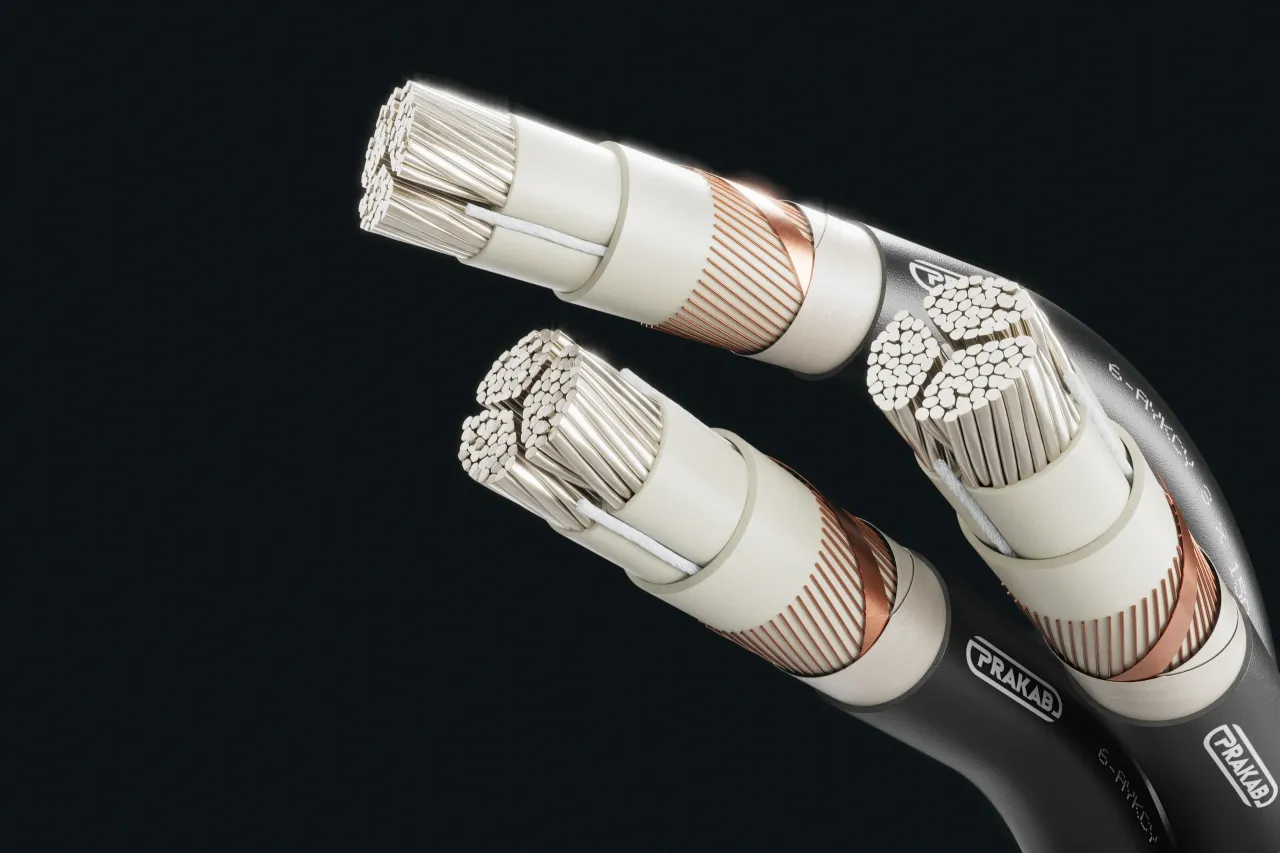

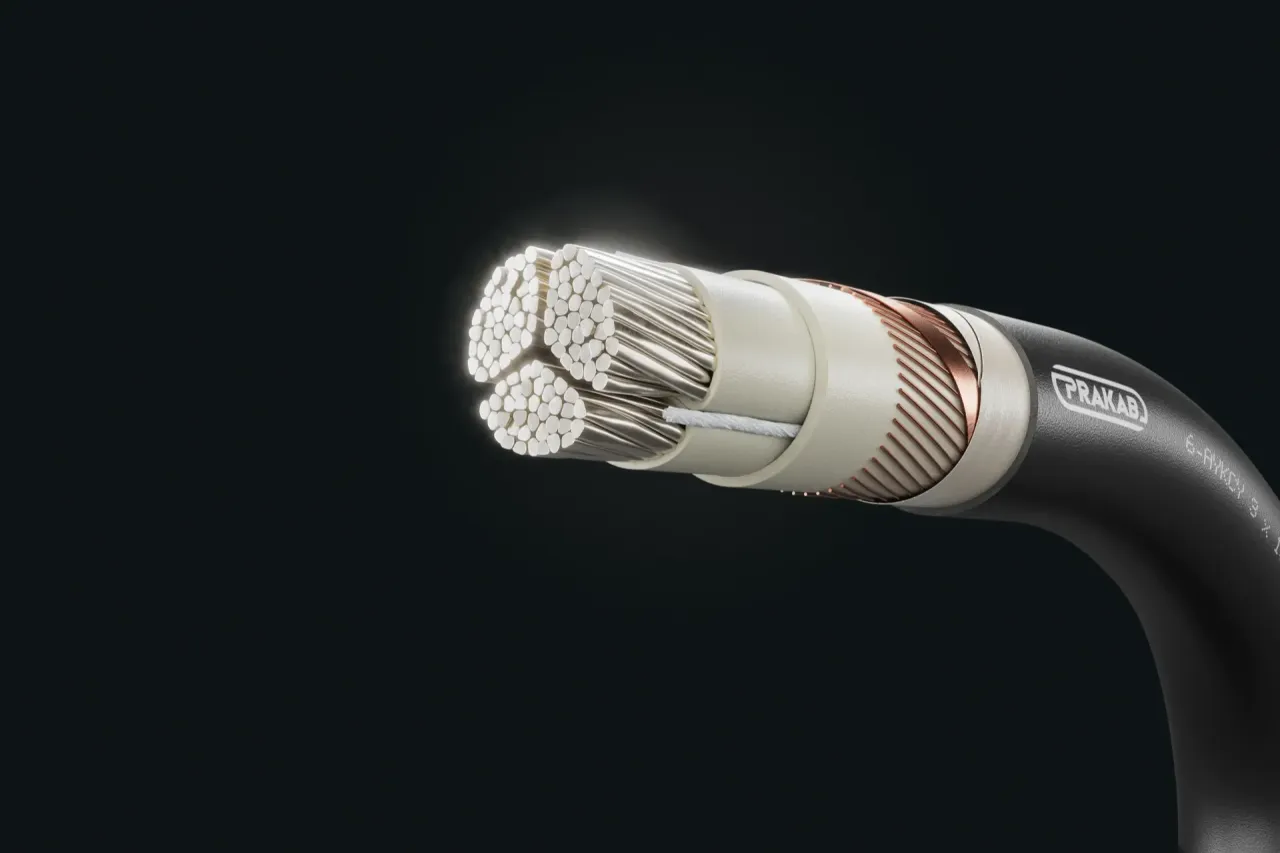

Design
This product consists of:
- 1Aluminium conductor, round stranded (RM), resp. sector-shaped stranded (SM)
- 2Core insulation (PVC)
- 3Inner covering (EPDM or plastic tape)
- 4Inner sheath (PVC colorless)
- 5Screen (copper tape or bare copper wires applied with changing direction of lay)
- 6Inner covering (plastic tape)
- 7Sheath (PVC black, UV-resistant)
Technical Data
Standard: TP PRAKAB 03/08
Certificate: EZÚ Czech Republic
Test Voltage: 15 kV / 50 Hz
Rated Voltage: 3,6/6 kV
Bending radius (min.):
- 6 x Ø of cable up to 20 mm
- 12 x Ø of cable from 20 mm to 40 mm
- 15 x Ø of cable over 40 mm
Fire properties:
- ČSN EN 60332-1-2: self-extinguishing
- CPR classification: Eca
Core identification: Natural cores colour
Temperature range:
- Laying temperature: min. -5°C
- Operating temperature: -50°C up to 70°C
- Conductor temperature: max. 70°C
- Short circuit temperature: max. 140°C
