AY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC insulated wires, stranded

Installation cables

Conductors are designed for fixed installation as interconnecting conductors in dry environment, in pipelines, under the plaster, in devices and switchboards.

Design

This product consists of:

  • 1
    Aluminium conductor, round solid (RE) or round stranded (RM)
  • 2
    Core insulation (PVC)

Technical Data

Standard: TP PRAKAB 01/24
Certificate: EZÚ Czech Republic
Test Voltage: 2,5 kV / 50 Hz
Rated Voltage: 450/750 V
Bending radius (min.):
  • 5 x Ø up to 50 mm2
  • 6 x Ø over 50 mm2
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR classification: Eca
Core identification: According to EN 50525-1: BK, BU, BN, GY, OG, PK, RD, VT, WH, GNYE
Temperature range:
  • Laying temperature: min. 5°C
  • Operating temperature: -5°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

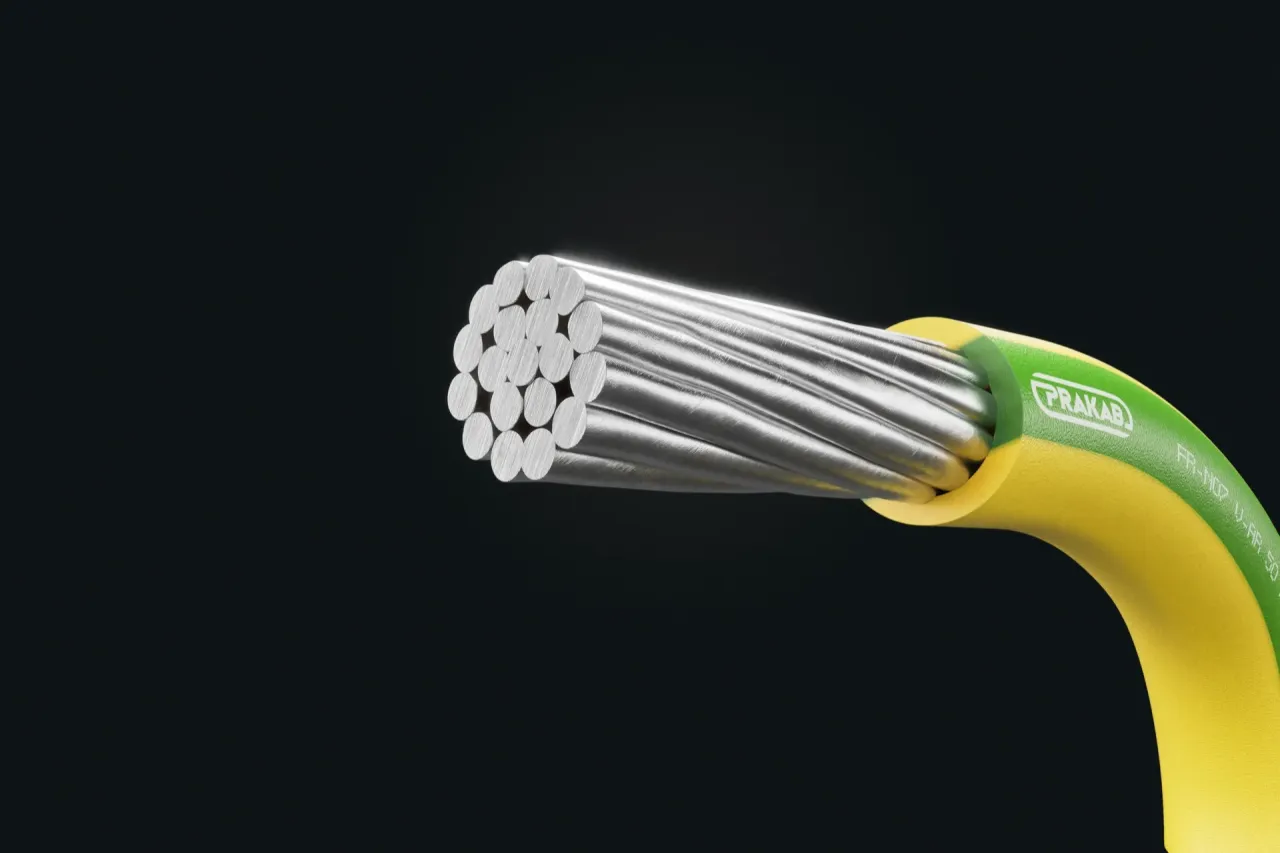

Cable image - AY
+
-

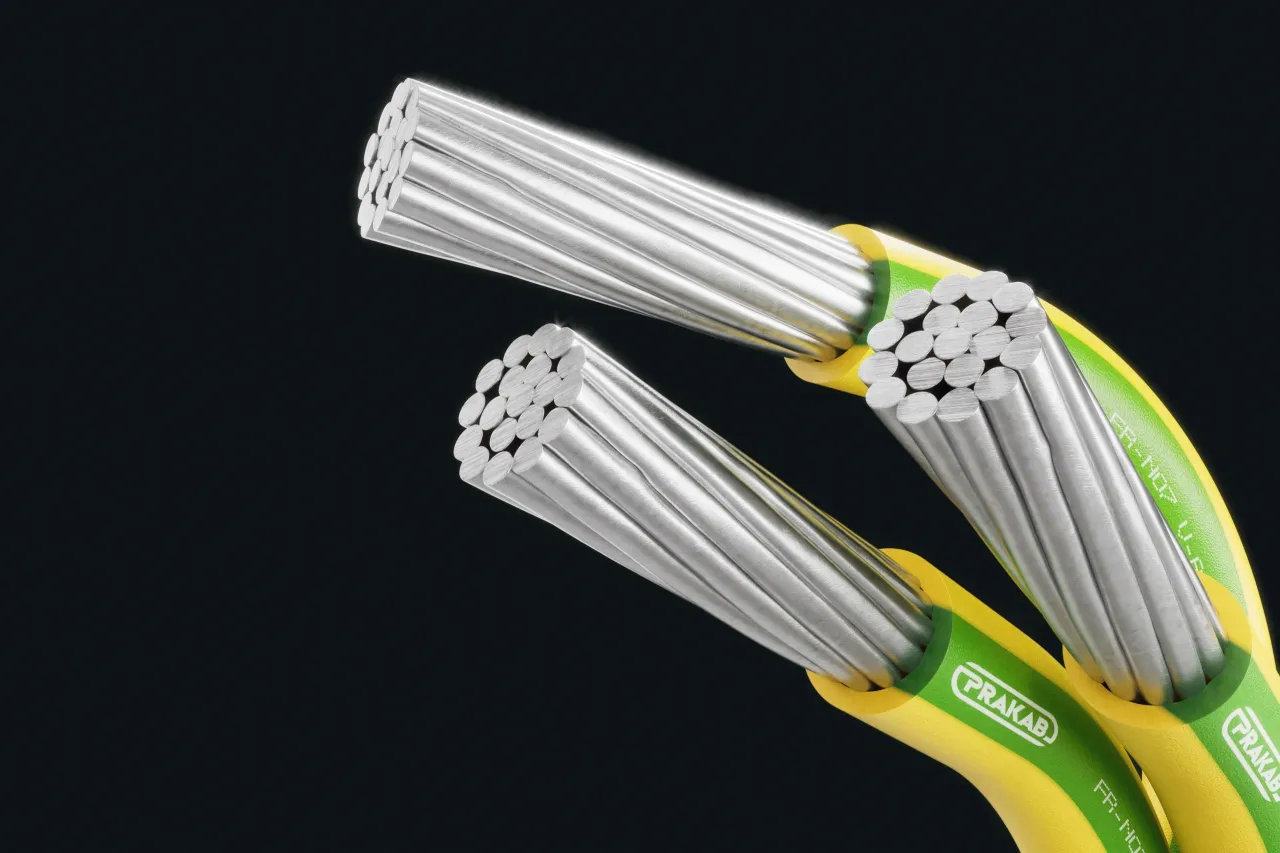

Cable image - AY
+
-
Cable image - AY
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
1 x 10 RE
3.08
58
5.9
53
1 x 10 RM
3.08
58
6.2
55
1 x 16 RE
1.91
82
6.7
71
1 x 16 RM
1.91
82
7.1
76
1 x 25 RM
1.2
110
8.7
114
1 x 35 RM
0.868
135
9.7
146
1 x 50 RM
0.641
166
11.4
196
1 x 70 RM
0.443
210
12.9
262
1 x 95 RM
0.32
259
15.1
358
1 x 120 RM
0.253
302
16.4
433
1 x 150 RM
0.206
345
18.3
534
1 x 185 RM
0.164
401
20.4
667
1 x 240 RM
0.125
479
23.2
863
1 x 300 RM
0.1
550
25.9
1069
1 x 400 RM
0.078
653
29.6
1363

Technical changes reserved.

All figures are therefore without guarantee.
