PVC/PVC aluminium installation cables
Instalation and Harmonised Cables and Wires
The cables are designed for fixed distribution of electricity in the ground or in the open environment without any mechanical stress.

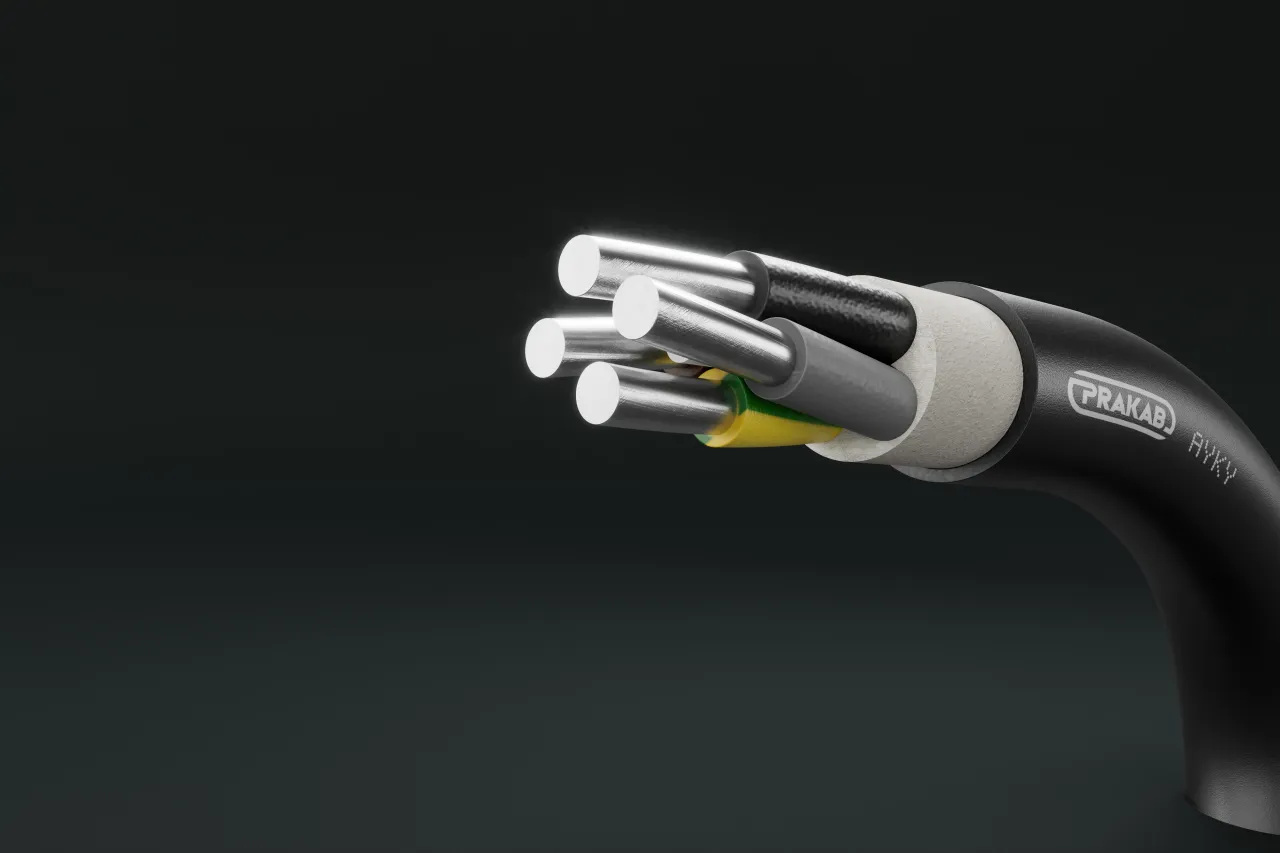

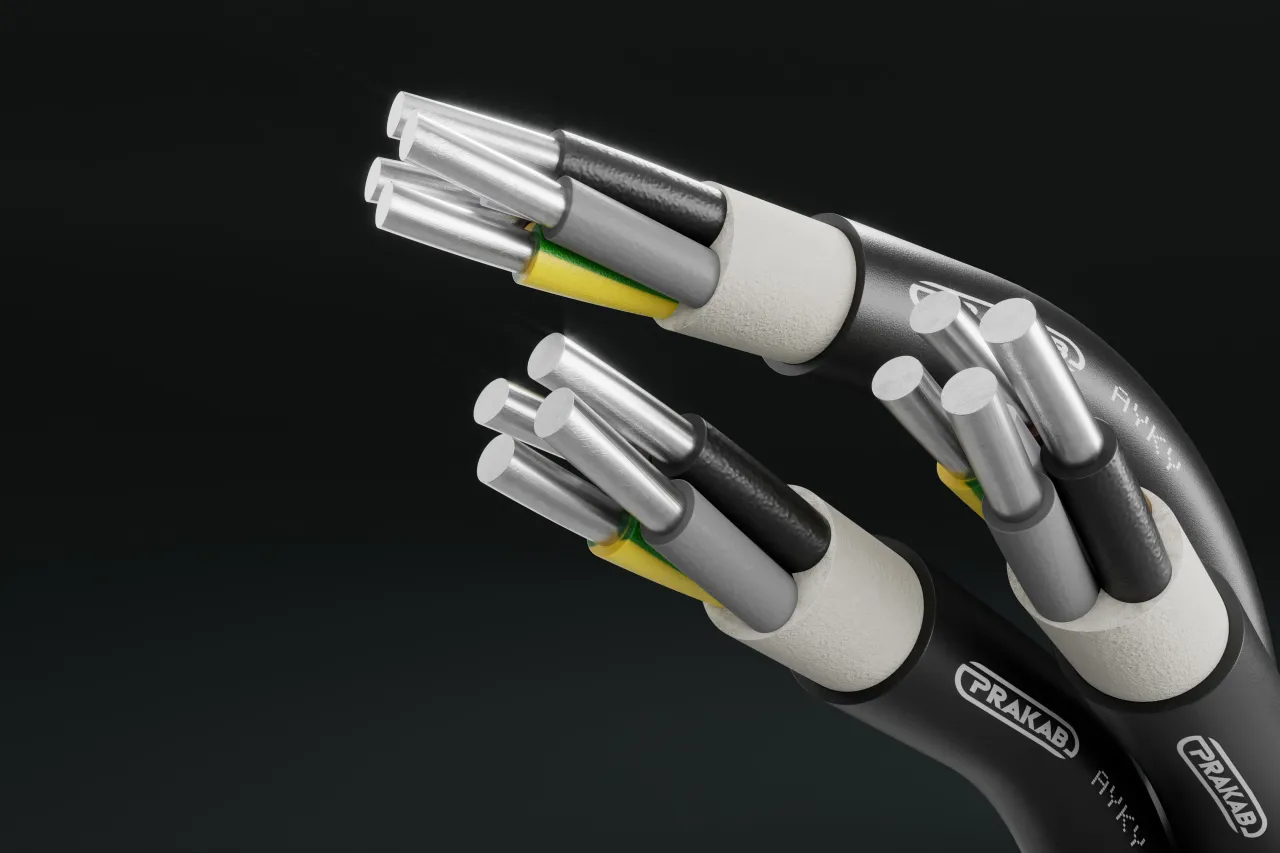

Design
This product consists of:
- 1Aluminium conductor, round solid (RE)
- 2Core insulation (PVC)
- 3Inner covering (EPDM)
- 4Sheath (PVC black, UV-resistant)
Technical Data
Standard: TP PRAKAB 02/08
Certificate: EZÚ Czech Republic
Test Voltage: 2,5 kV / 50 Hz
Rated Voltage: 450/750 V
Bending radius (min.): 12 x Ø up to 15 mm
Fire properties:
- EN 60332-1-2: self-extinguishing
- CPR Classification: Eca
Core identification: ČSN 33 0166 ed. 2
Temperature range:
- Laying temperature: min. -5°C
- Operating temperature: -50°C up to 70°C
- Conductor temperature: max. 70°C
- Short circuit temperature: max. 70°C
