PVC/PVC aluminium installation cables

Instalation and Harmonised Cables and Wires

The cables are designed for fixed distribution of electricity in the ground or in the open environment without any mechanical stress.

Design

This product consists of:

  • 1
    Aluminium conductor, round solid (RE)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (EPDM)
  • 4
    Sheath (PVC black, UV-resistant)

Technical Data

Standard: TP PRAKAB 02/08
Certificate: EZÚ Czech Republic
Test Voltage: 2,5 kV / 50 Hz
Rated Voltage: 450/750 V
Bending radius (min.): 12 x Ø up to 15 mm
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR Classification: Eca
Core identification: ČSN 33 0166 ed. 2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 70°C

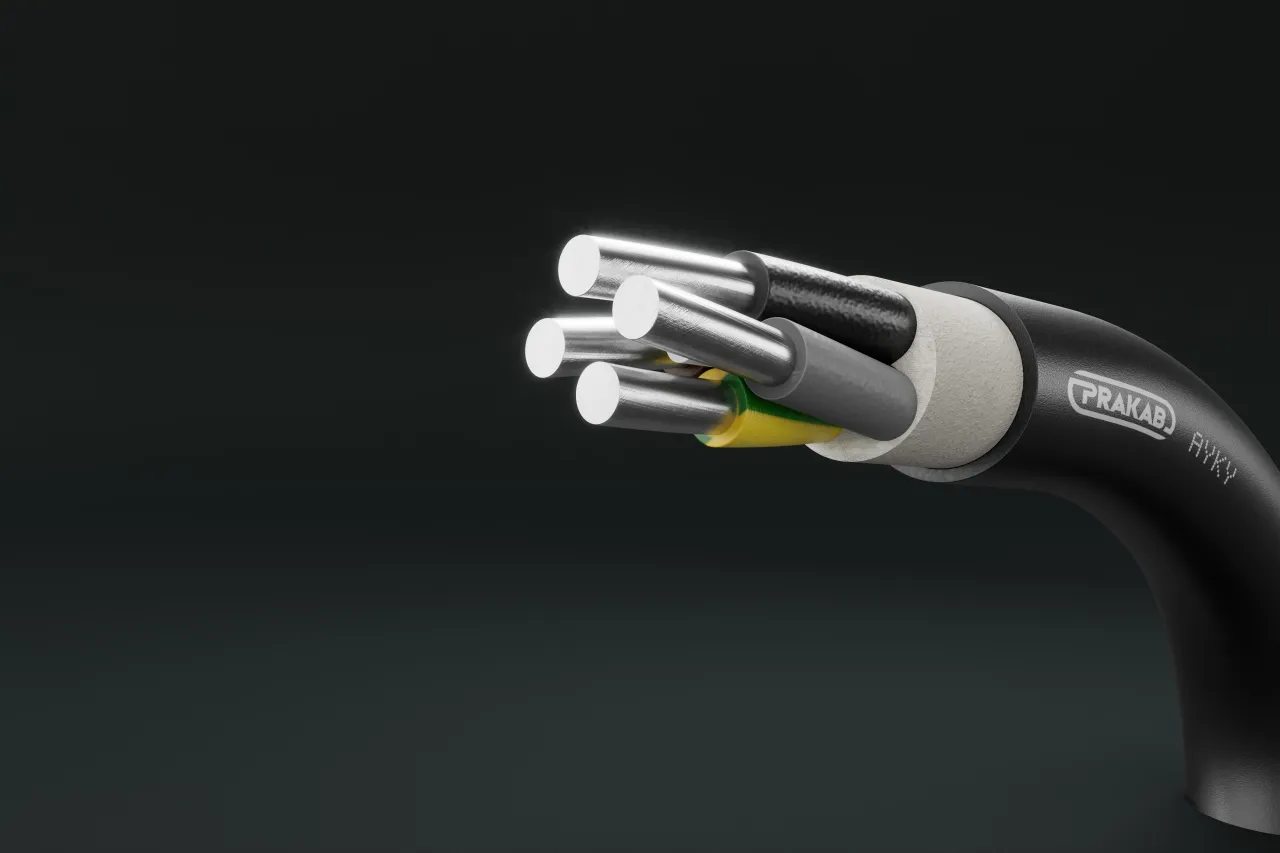

Cable image - AYKY
+
-
Cable image - AYKY
+
-
Cable image - AYKY
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 10 RE
3.096
72
51
15.0
280
3 x 10 RE
3.096
63
45
15.9
320
4 x 10 RE
3.096
63
45
17.2
375
5 x 10 RE
3.096
44
33
18.8
435
2 x 16 RE
1.935
93
70
16.8
375
3 x 16 RE
1.935
81
61
17.8
420
4 x 16 RE
1.935
81
61
19.4
570
5 x 16 RE
1.935
56
46
21.3
600

Technical changes reserved.

All figures are therefore without guarantee.
