CYKYDY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC installation cables, armoured

Installation cables

The cables are designed for fixed distribution of electricity in the ground or in an open environment resistant to increased mechanical pressure.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (EPDM)
  • 4
    Sheat (PVC black)
  • 5
    Armouring (bare steel tape)
  • 6
    Outer covering (PVC black, UV-resistant)

Technical Data

Standard: TP PRAKAB 01/03
Certificate: EZÚ Czech Republic
Test Voltage: core/core 2,5 kV / 50 Hz
Rated Voltage: 450/750 V
Bending radius (min.):
  • 12 x Ø of cable up to 15 mm (included)
  • 15 x Ø of cable over 15 mm
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR classification: Eca
Core identification:
  • ČSN 33 0166 ed. 2
  • ČSN EN 50334
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

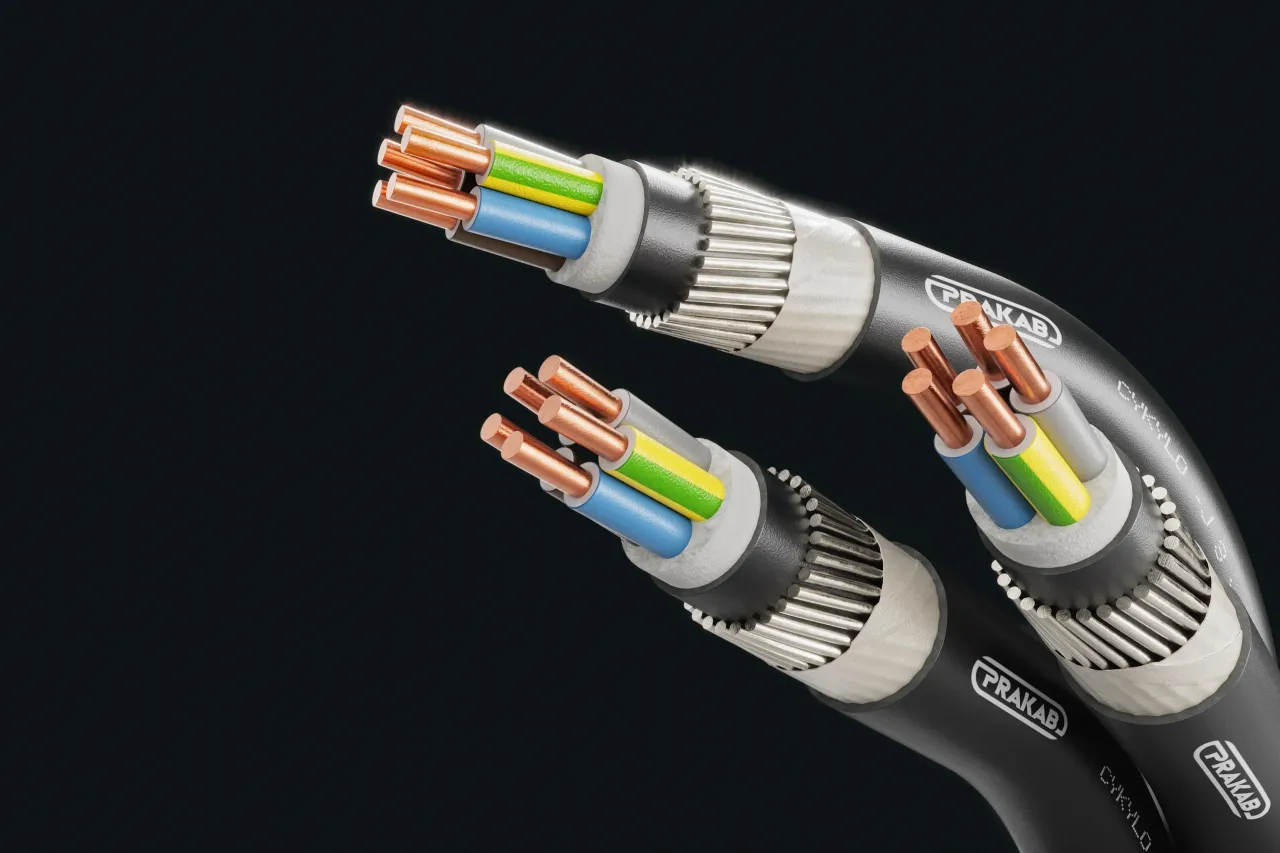

Cable image - CYKYDY
+
-

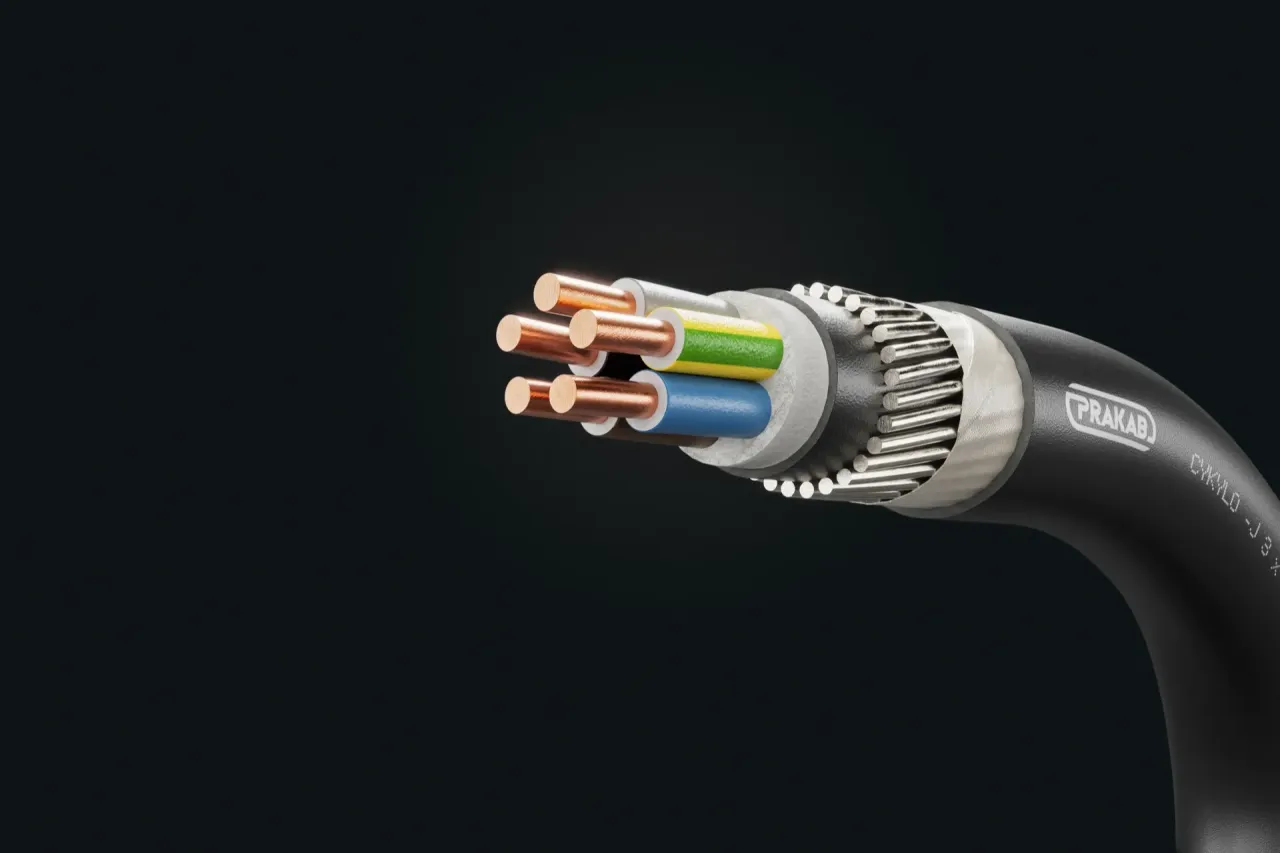

Cable image - CYKYDY
+
-
Cable image - CYKYDY
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.531
34
22
15.0
480
3 x 1.5 RE
12.531
28
19
15.5
520
4 x 1.5 RE
12.531
28
19
16.2
570
5 x 1.5 RE
12.531
28
19
17.2
625
7 x 1.5 RE
12.531
16
13
17.9
705
12 x 1.5 RE
12.531
13
10
21.5
1010
19 x 1.5 RE
12.531
11
9
23.9
1310
24 x 1.5 RE
12.531
9
8
27.0
1590
37 x 1.5 RE
12.531
8
7
29.9
2650
48 x 1.5 RE
12.531
7
6
33.5
3180
2 x 2.5 RE
7.52
45
30
15.9
565
3 x 2.5 RE
7.52
36
25
16.4
605
4 x 2.5 RE
7.52
36
25
17.2
675
5 x 2.5 RE
7.52
36
25
18.1
780
7 x 2.5 RE
7.52
22
16
19.1
915
12 x 2.5 RE
7.52
17
13
23.2
1300
19 x 2.5 RE
7.52
14
11
26.2
1700
24 x 2.5 RE
7.52
13
10
29.4
2730
37 x 2.5 RE
7.52
11
9
33.1
3430
48 x 2.5 RE
7.52
10
8
36.8
4130
2 x 4 RE
4.7
59
40
17.5
665
3 x 4 RE
4.7
48
34
18.1
730
4 x 4 RE
4.7
48
34
19.1
875
5 x 4 RE
4.7
48
34
20.7
980
7 x 4 RE
4.7
28
22
21.9
1190
12 x 4 RE
4.7
22
18
26.9
1680
2 x 6 RE
3.133
73
51
18.5
800
3 x 6 RE
3.133
61
43
19.2
905
4 x 6 RE
3.133
61
43
20.7
1010
5 x 6 RE
3.133
61
43
22.0
1150
3 x 10 RE
1.88
81
60
21.6
1110
4 x 10 RE
1.88
81
60
23.0
1330
5 x 10 RE
1.88
81
60
24.9
1520
3 x 16 RE
1.175
105
80
23.6
1420
4 x 16 RE
1.175
105
80
25.5
1650
5 x 16 RE
1.175
105
80
27.3
1970

Technical changes reserved.

All figures are therefore without guarantee.
