Flat PVC/PVC installation cables

Instalation and Harmonised Cables and Wires

The cables are designed for fixed power distribution under the plaster, in sanitary units, in pipes and rails.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE)
  • 2
    Core insulation (PVC)
  • 3
    Sheath (PVC black, UV-resistant)

Technical Data

Standard: ČSN 34 7411
Certificate: EZÚ Czech Republic
Test Voltage: 2.5 kV / 50 Hz
Rated Voltage: 450/750 V
Bending radius (min.): 6 cable height: Bending of the cable is only possible in its shorter axis
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR classification: Eca
Core identification: ČSN 33 0166 ed. 2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -40°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

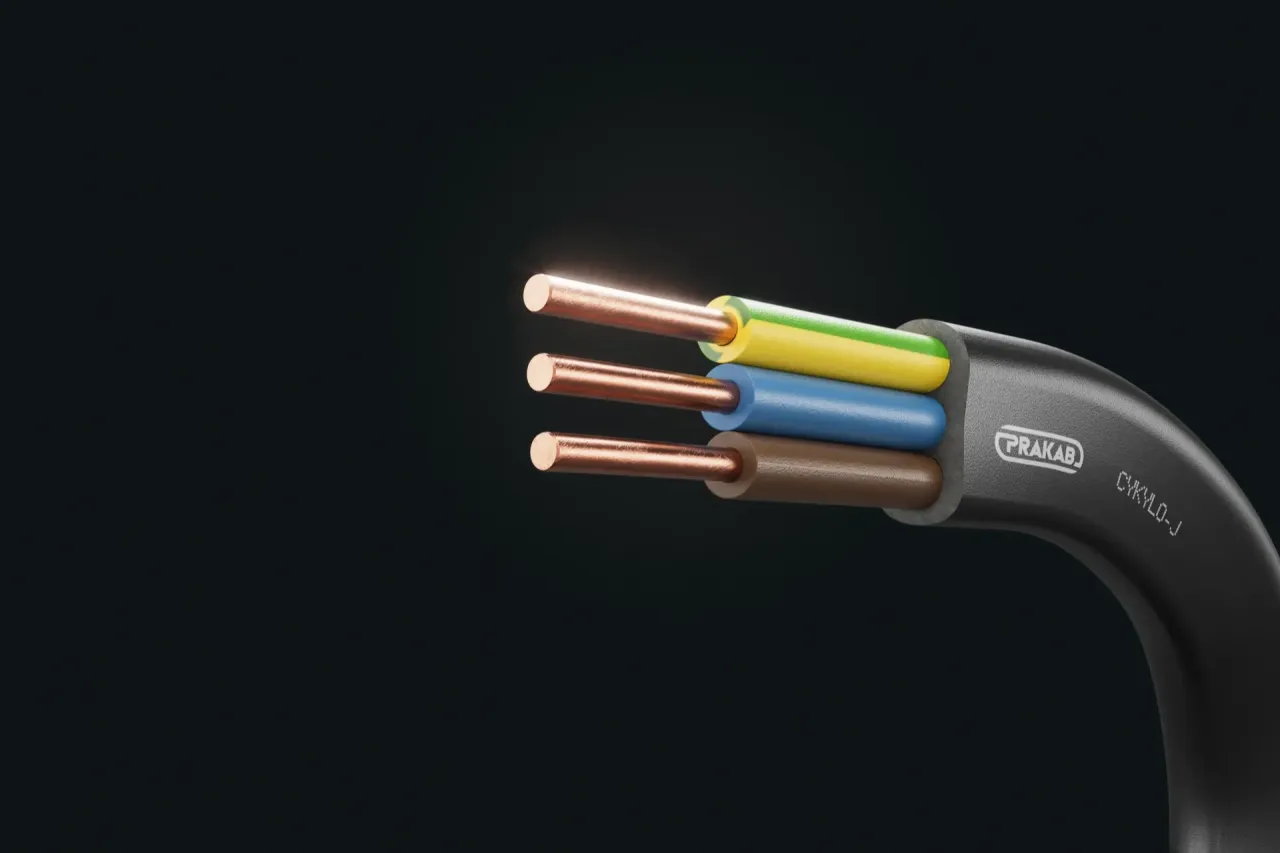

Cable image - CYKYLo
+
-
Cable image - CYKYLo
+
-
Cable image - CYKYLo
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the earth (A)
Width of flatted conductor (mm)
Height of flatted conductor (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.531
22
6.7
3.9
60
3 x 1.5 RE
12.531
19
9.5
3.9
80
2 x 2.5 RE
7.52
30
7.5
4.3
85
3 x 2.5 RE
7.52
25
10.7
4.3
120

Technical changes reserved.

All figures are therefore without guarantee.
