PVC/PVC copper energy cables

Power Cables and Overhead Lines 0.6/1 kV

Power distribution cable for power stations, industrial facilities and switching stations as well as for local power networks. For fixed installation indoors, in cable ducts, outdoors and in water, according to the applicable erection standards, if no risk of any mechanical damage is to be expected.

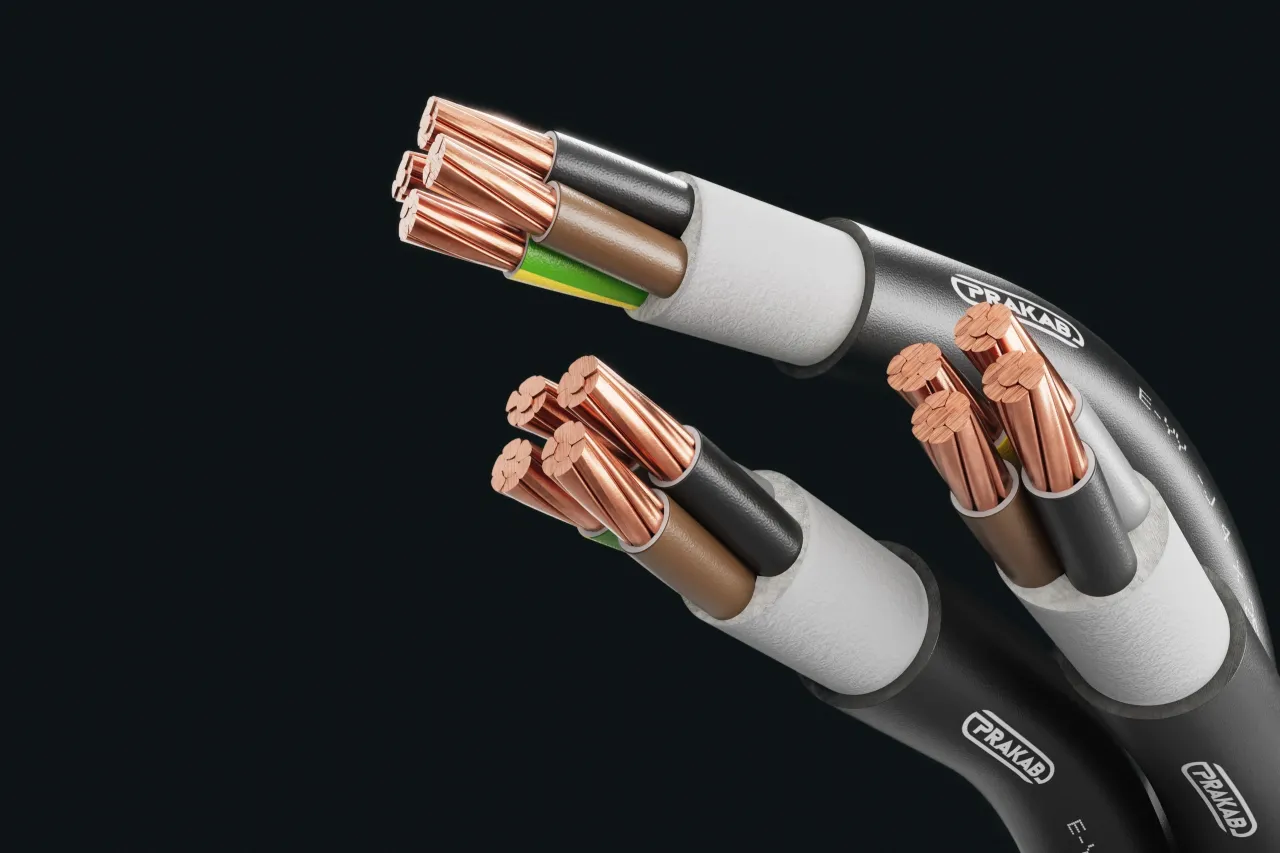

Design

This product consists of:

1
Copper conductor, round solid (RE), round stranded (RM) resp. sector-shaped stranded (SM)
2
Core insulation (PVC)
3
Inner covering (EPDM or plastic tape)
4
Sheath (PVC black, UV-resistant)

Technical Data

Standard:

ÖVE/ONORM E 8200-603 (HD 603)
ÖVE/ÖNORM E 8200-627 (HD627) for multi-core (6-61x)

Certificate: ÖVE Austria

Test Voltage: core/core 4 kV / 50 Hz

Rated Voltage: 0,6/1 kV

Bending radius (min.):

12 x Ø of cable (multicore)
15 x Ø of cable (singlecore)

Fire properties:

EN 60332-1-2: self-extinguishing
CPR classification: Eca

Core identification: HD 308 S2

Temperature range:

Laying temperature: min. -5°C
Operating temperature: -50°C up to 70°C
Conductor temperature: max. 70°C
Short circuit temperature: max. 140°C

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907

[email protected]

Add to inquiry

Number of cores x nominal cross-section (mm²)

Max. conductor resistance (Ω/km)

Current rating in the earth (A)

Current rating in the air (A)

Outer diameter appr. (mm)

Total weight appr. (kg/km)

2 x 1.5 RE

12.1

10.0

147

3 x 1.5 RE

12.1

10.4

167

4 x 1.5 RE

12.1

11.1

194

5 x 1.5 RE

12.1

12.0

224

7 x 1.5 RE

12.1

13.2

291

10 x 1.5 RE

12.1

16.1

412

12 x 1.5 RE

12.1

16.5

451

14 x 1.5 RE

12.1

17.2

499

19 x 1.5 RE

12.1

18.9

623

24 x 1.5 RE

12.1

21.8

795

30 x 1.5 RE

12.1

22.9

918

37 x 1.5 RE

12.1

25.0

1106

40 x 1.5 RE

12.1

25.9

1183

44 x 1.5 RE

12.1

27.9

1332

48 x 1.5 RE

12.1

28.3

1404

2 x 2.5 RE

7.41

10.7

182

3 x 2.5 RE

7.41

11.2

211

4 x 2.5 RE

7.41

12.1

249

5 x 2.5 RE

7.41

13.0

289

7 x 2.5 RE

7.41

14.4

379

10 x 2.5 RE

7.41

17.6

541

12 x 2.5 RE

7.41

18.1

599

14 x 2.5 RE

7.41

18.9

667

19 x 2.5 RE

7.41

20.8

843

24 x 2.5 RE

7.41

24.5

1103

30 x 2.5 RE

7.41

25.8

1283

37 x 2.5 RE

7.41

27.7

1521

40 x 2.5 RE

7.41

28.8

1630

48 x 2.5 RE

7.41

31.4

1941

2 x 4 RE

4.61

12.4

251

3 x 4 RE

4.61

13.0

295

4 x 4 RE

4.61

14.0

351

5 x 4 RE

4.61

15.2

412

7 x 4 RE

4.61

16.8

542

10 x 4 RE

4.61

20.9

784

12 x 4 RE

4.61

21.5

872

14 x 4 RE

4.61

22.6

975

19 x 4 RE

4.61

25.4

1267

24 x 4 RE

4.61

29.4

1629

30 x 4 RE

4.61

31.1

1904

37 x 4 RE

4.61

33.5

2269

2 x 6 RE

3.08

13.4

312

3 x 6 RE

3.08

14.1

372

4 x 6 RE

3.08

15.2

448

5 x 6 RE

3.08

16.5

530

7 x 6 RE

3.08

18.3

701

2 x 10 RE

1.83

15.4

445

3 x 10 RE

1.83

16.2

543

4 x 10 RE

1.83

17.6

662

4 x 10 RM

1.83

18.1

685

5 x 10 RE

1.83

19.2

795

5 x 10 RM

1.83

19.8

822

1 x 16 RE

1.15

107

10.1

232

1 x 16 RM

1.15

107

10.4

239

3 x 16 RE

1.15

101

18.2

754

3 x 16 RM

1.15

101

18.7

780

4 x 16 RE

1.15

101

19.8

929

4 x 16 RM

1.15

101

20.4

960

5 x 16 RE

1.15

21.7

1125

5 x 16 RM

1.15

22.3

1161

1 x 25 RM

0.727

138

114

11.9

345

3 x 25 RM

0.727

132

105

22.1

1151

3 x 25 + 16 RM/RE

0.727

132

105

23.2

1308

4 x 25 RM

0.727

132

105

24.5

1450

5 x 25 RM

0.727

132

105

26.9

1757

1 x 35 RM

0.524

164

139

13.0

444

3 x 35 SM

0.524

159

129

24.3

1443

3 x 35 + 16 SM/RE

0.524

159

129

24.7

1514

4 x 35 SM

0.524

159

129

24.3

1639

1 x 50 RM

0.387

195

169

14.6

582

3 x 50 SM

0.387

188

157

25.3

1660

3 x 50 + 25 SM/RM

0.387 / 0.727

188

157

28.1

1948

4 x 50 SM

0.387

188

157

28.1

2173

5 x 50 RM

0.387

188

157

29.4

2673

1 x 70 RM

0.268

238

213

16.4

789

3 x 70 SM

0.268

232

199

28.1

2267

3 x 70 + 35 SM/RM

0.268 / 0.524

232

199

30.9

2642

4 x 70 SM

0.268

232

199

30.9

2969

5 x 70 RM

0.268

232

199

34.8

3720

1 x 95 RM

0.193

286

264

18.5

1060

3 x 95 SM

0.193

280

246

31.5

3069

3 x 95 + 50 SM/RM

0.193 / 0.268

280

246

36.4

3621

4 x 95 SM

0.193

280

246

36.4

4081

5 x 95 RM

0.193

280

246

38.6

5056

1 x 120 RM

0.153

325

307

19.8

1293

3 x 120 SM

0.153

318

285

34.0

3774

3 x 120 + 70 SM/RM

0.153 / 0.268

318

285

39.2

4525

4 x 120 SM

0.153

318

285

39.2

5022

5 x 120 RM

0.153

318

285

43.3

6235

1 x 150 RM

0.124

365

352

21.7

1578

3 x 150 SM

0.124

359

326

38.0

4665

3 x 150 + 70 SM/RM

0.124 / 0.268

359

326

43.9

5390

4 x 150 SM

0.124

359

326

43.9

6158

5 x 150 SM

0.124

359

326

48.3

7734

1 x 185 RM

0.099

413

406

24.2

1971

3 x 185 SM

0.099

406

374

41.6

5775

3 x 185 + 95 SM/RM

0.099 / 0.193

406

374

49.5

6860

4 x 185 SM

0.099

406

374

49.5

7733

5 x 185 SM

0.099

406

374

54.1

9617

1 x 240 RM

0.075

479

483

27.0

2540

3 x 240 SM

0.075

473

445

47.2

7564

3 x 240 + 120 SM/RM

0.075 / 0.153

473

445

55.1

8803

4 x 240 SM

0.075

473

445

55.1

10002

1 x 300 RM

0.060

539

552

29.6

3142

3 x 300 + 150 SM/RM

0.060 / 0.124

535

510

61.8

11017

1 x 400 RM

0.047

614

646

33.2

3968

1 x 500 RM

0.037

693

747

37.1

5054

1 x 630 RM

0.028

740

840

40.9

6401
