Special single core rubber wire
For application in busses and railborn vehicles, in dry rooms, if used in distribution or switching appliances up to 1000 V, it is considered to be short circuit proof. NSGAFöu 3.6/6 kV on request.

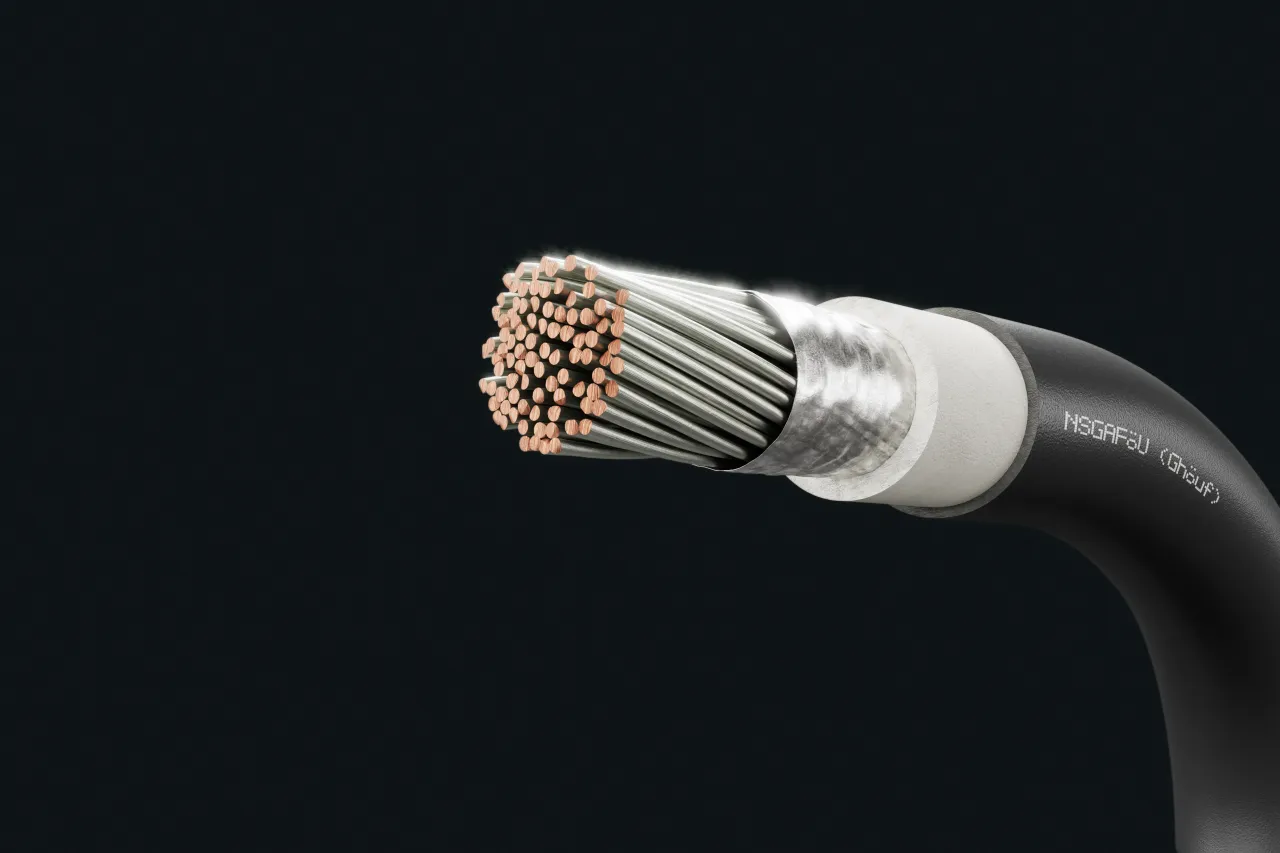

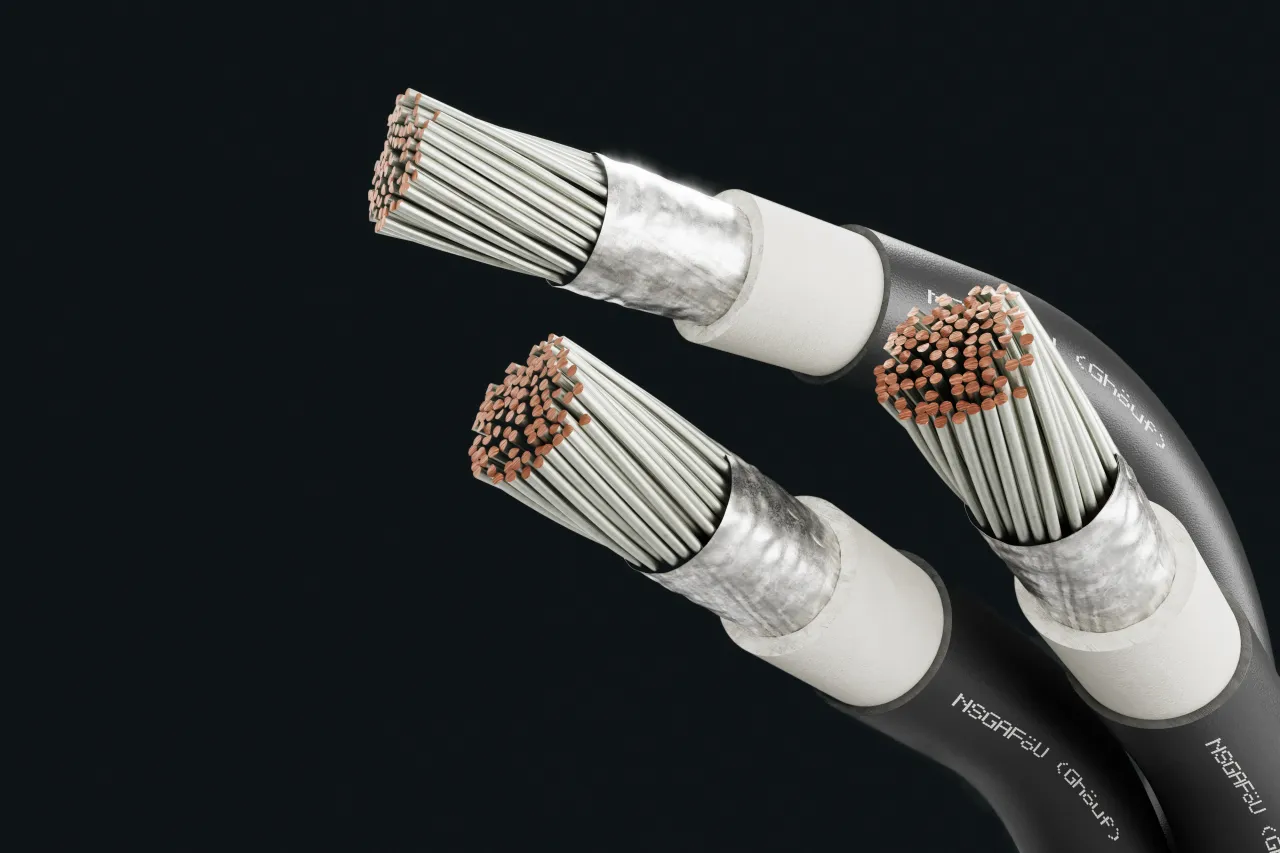

Design
This product consists of:
- 1Fine-stranded tinned copper conductor
- 2Strapping (Al-PET foil)
- 3Wire insulation (EPR rubber)
- 4Jacket (black polychloroprene, oil-resistant and abrasion-resistant)
Technical Data
Standard: DIN VDE 0250-602
Certificate: VDE Germany
Test Voltage: 6 kV / 50 Hz
Rated Voltage: 1,8/3 kV (Uo/U)
Bending radius (min.): 10 x Ø of cable (free motion)
Fire properties: EN 60332-1-2: flame retardant
Temperature range:
- Laying temperature: min. -25°C
- Conductor temperature: max. 90°C
- Short circuit temperature: max. 200°C
- Fixed installation: -40°C up to 80°C
- Flexible use: -25°C up to 80°C
