PVC/PVC copper energy cables
Copper 0,6/1 kV
The cables are designed for distribution of electrical energy in fixed installation in the ground, cable ducts and in the outdoor environment.

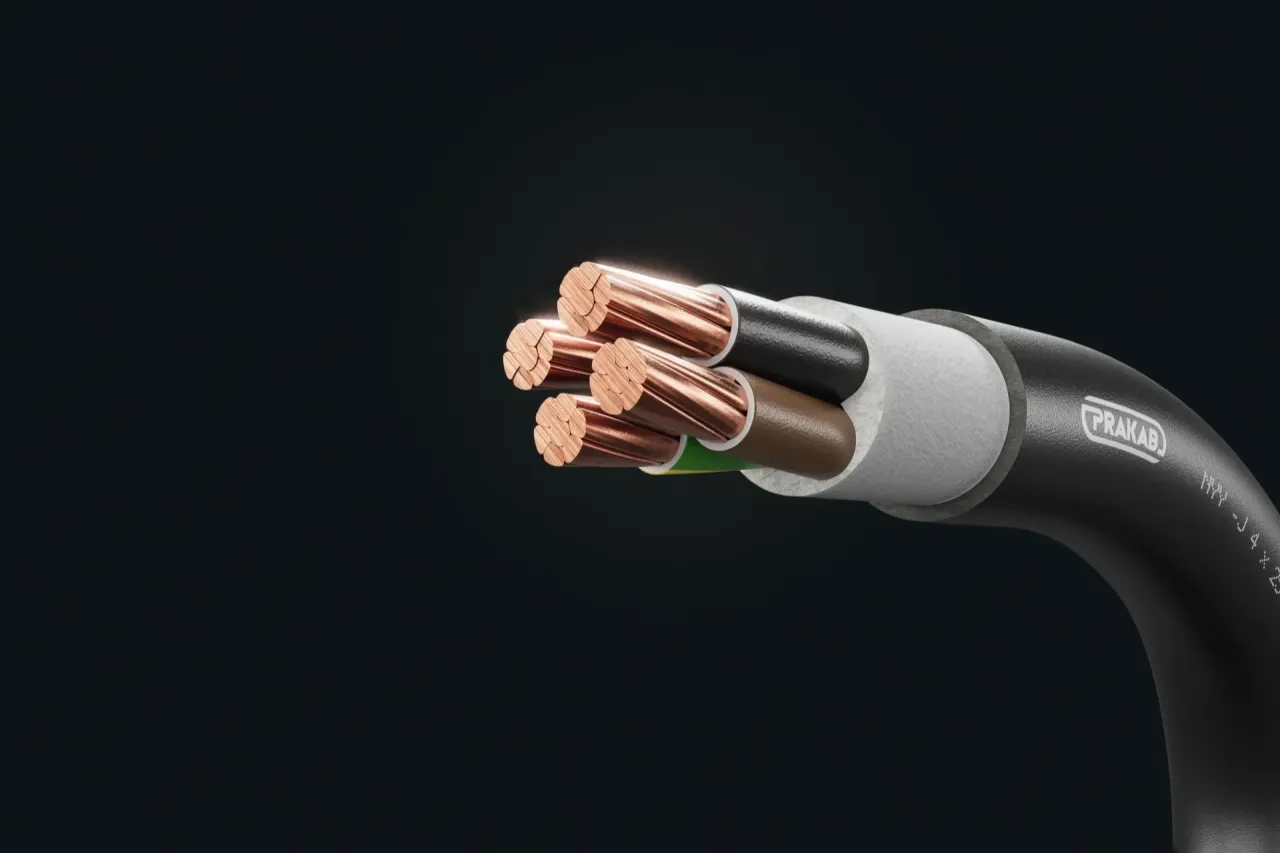

Design
This product consists of:
- 1Copper conductor, sector-shaped stranded (SM)
- 2Core insulation (PVC)
- 3Inner covering (extruded rubber)
- 4Sheath (PVC black, UV-resistant)
Technical Data
Standard: adapted to DIN VDE 0276-603 (HD603)
Certificate: VDE Germany
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.): 12 x Ø of cable
Fire properties:
- EN 60332-1-2: self-extinguishing
- CPR classification: Eca
Core identification: HD 308 S2
Temperature range:
- Laying temperature: min. -5°C
- Operating temperature: -50°C up to 70°C
- Conductor temperature: max. 70°C
- Short circuit temperature: max. 160°C
