(N)YY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC/PVC copper energy cables

Copper 0,6/1 kV

The cables are designed for distribution of electrical energy in fixed installation in the ground, cable ducts and in the outdoor environment.

Design

This product consists of:

  • 1
    Copper conductor, sector-shaped stranded (SM)
  • 2
    Core insulation (PVC)
  • 3
    Inner covering (extruded rubber)
  • 4
    Sheath (PVC black, UV-resistant)

Technical Data

Standard: adapted to DIN VDE 0276-603 (HD603)
Certificate: VDE Germany
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.): 12 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing
  • CPR classification: Eca
Core identification: HD 308 S2
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -50°C up to 70°C
  • Conductor temperature: max. 70°C
  • Short circuit temperature: max. 160°C

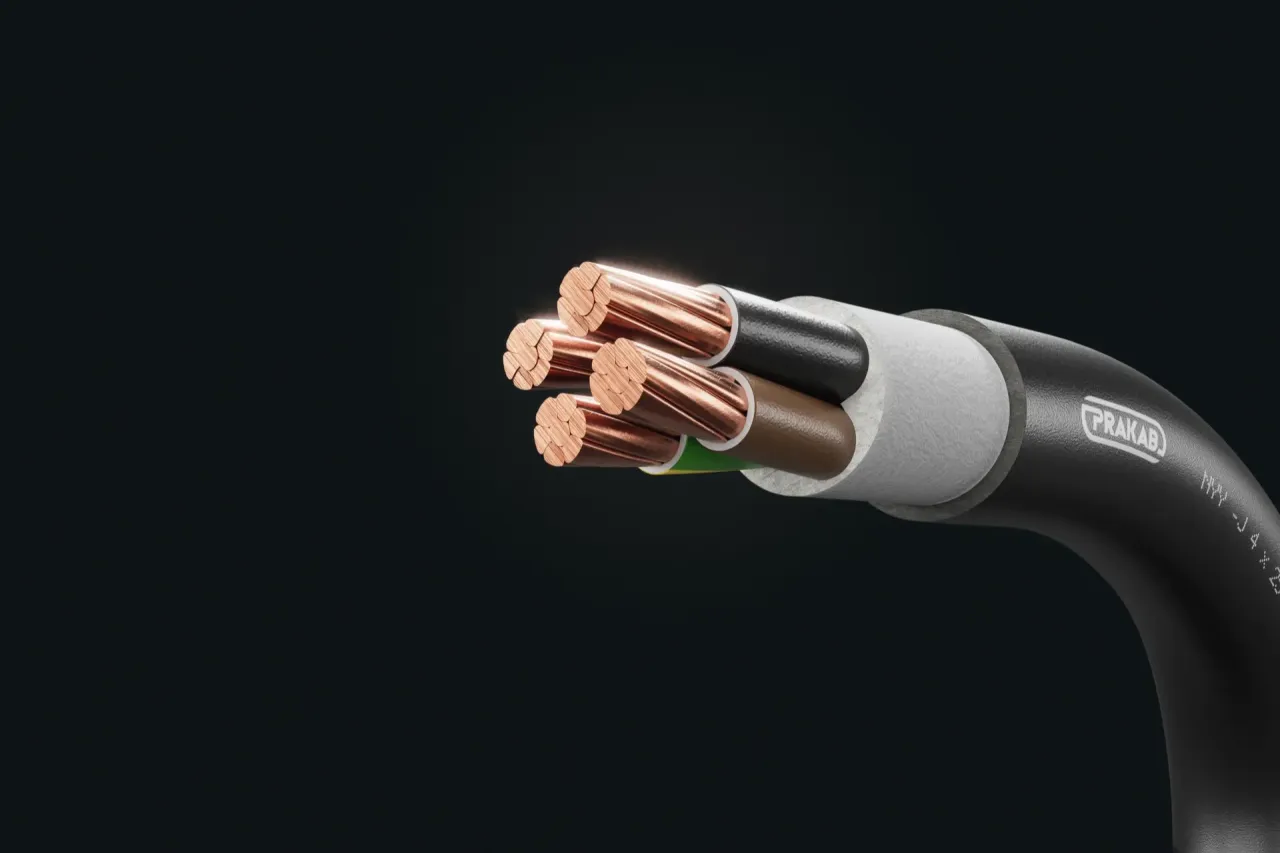

Cable image - (N)YY
+
-

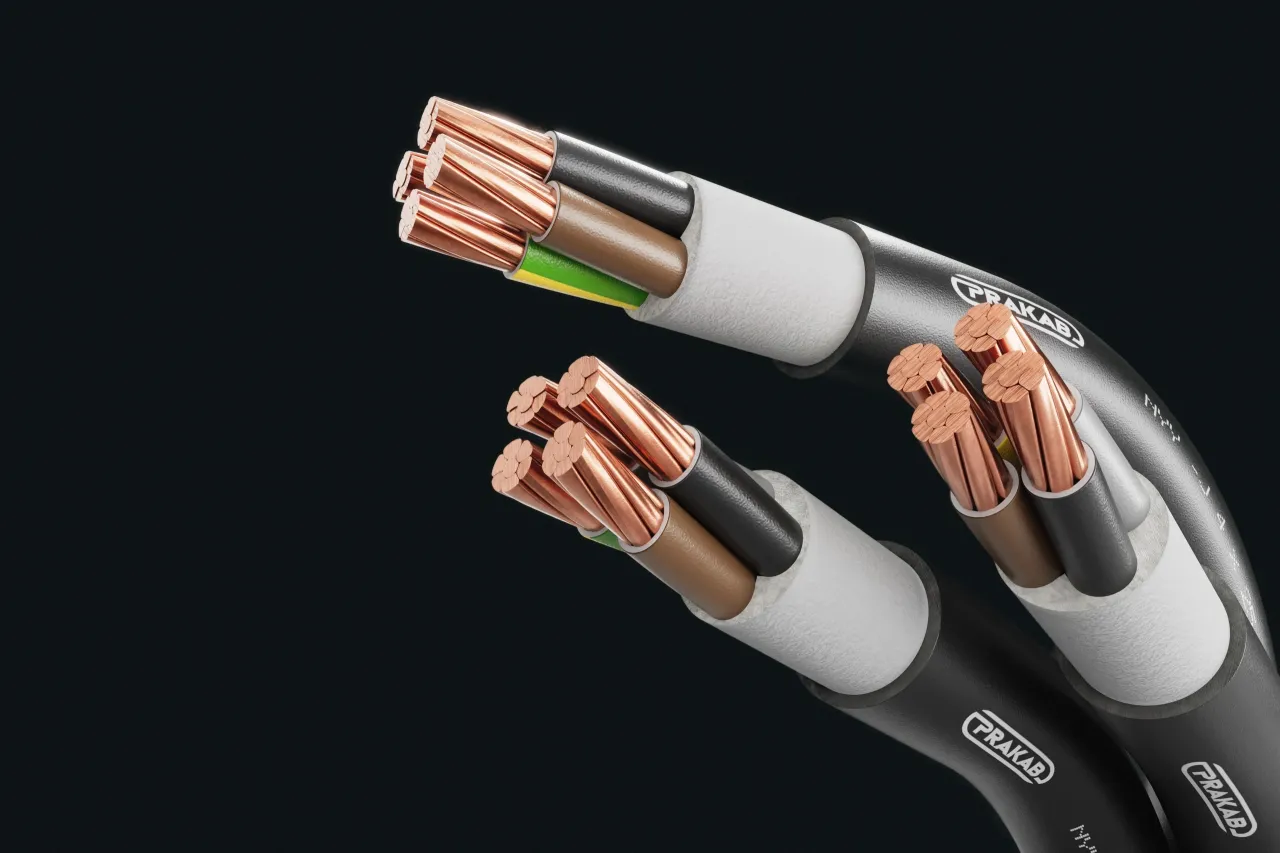

Cable image - (N)YY
+
-
Cable image - (N)YY
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
5 x 50 SM
0.387
157
34.0
3061
5 x 70 SM
0.268
199
39.0
4168
5 x 95 SM
0.193
246
44.0
5626
5 x 120 SM
0.153
285
49.0
6916
5 x 150 SM
0.124
326
54.0
8455
5 x 185 SM
0.099
374
60.0
10472
5 x 240 SM
0.075
445
71.0
13617

Technical changes reserved.

All figures are therefore without guarantee.
