PRAFlaSafe XC1

Download PDF

Add to inquiry

Download PDF

To inquiry

1-CXKCH-R B2ca s1a d1 a1 XLPE/FRNC copper energy cable, halogen-free, screened, UV-resistant

Low Voltage Cables 0,6/1 kV

Cables are designed for fixed distribution of electricity in ordinary environment in hotels, hospitals, subway, airports, etc., to protect people and technical equipment of buildings in case of fire, where there is no requirement to maintain the functionality of the entire cable installation in fire. In case of fire, the cable releases a small amount of heat and smoke. The cables are UV-resistant.

Design

This product consists of:

  • 1
    Copper conductor, round solid (RE), round stranded (RM) resp. sector-shaped stranded (SM)
  • 2
    Core insulation (XLPE)
  • 3
    Inner covering (halogen-free filling compound)
  • 4
    Inner sheath (halogen-free polymer compound)
  • 5
    Concentric screen (copper tape) and halogen-free plastic tape
  • 6
    Sheath (halogen-free polymer compound, orange, UV resistant)

Technical Data

Standard:
  • ČSN 34 7660-100
  • TP PRAKAB 01/21
Certificate:
  • EZÚ Czech Republic
  • TSÚS Slovakia
Test Voltage: core/core 4 kV / 50 Hz
Rated Voltage: 0,6/1 kV
Bending radius (min.):
  • 6 x Ø of cable up to 20 mm
  • 12 x Ø of cable from 20 mm to 40 mm
  • 15 x Ø of cable over 40 mm
  • 15 x Ø of cable (singlecore)
Fire properties:
  • ČSN EN 60332-1-2: self-extinguishing
  • ČSN EN 60754-2: halogen-free, non-corrosive combustion gases
  • ČSN EN 61034-2: low smoke emission
  • ČSN EN 60332-3-22: reduced flame propagation
  • ČSN EN 13501-6: fire classification
  • CPR classification: B2ca s1a d1 a1
Core identification: HD 308 S2, EN 50334
Temperature range:
  • Laying temperature: min. -5°C
  • Operating temperature: -30°C up to 90°C
  • Conductor temperature: max. 90°C
  • Short circuit temperature: max. 250°C

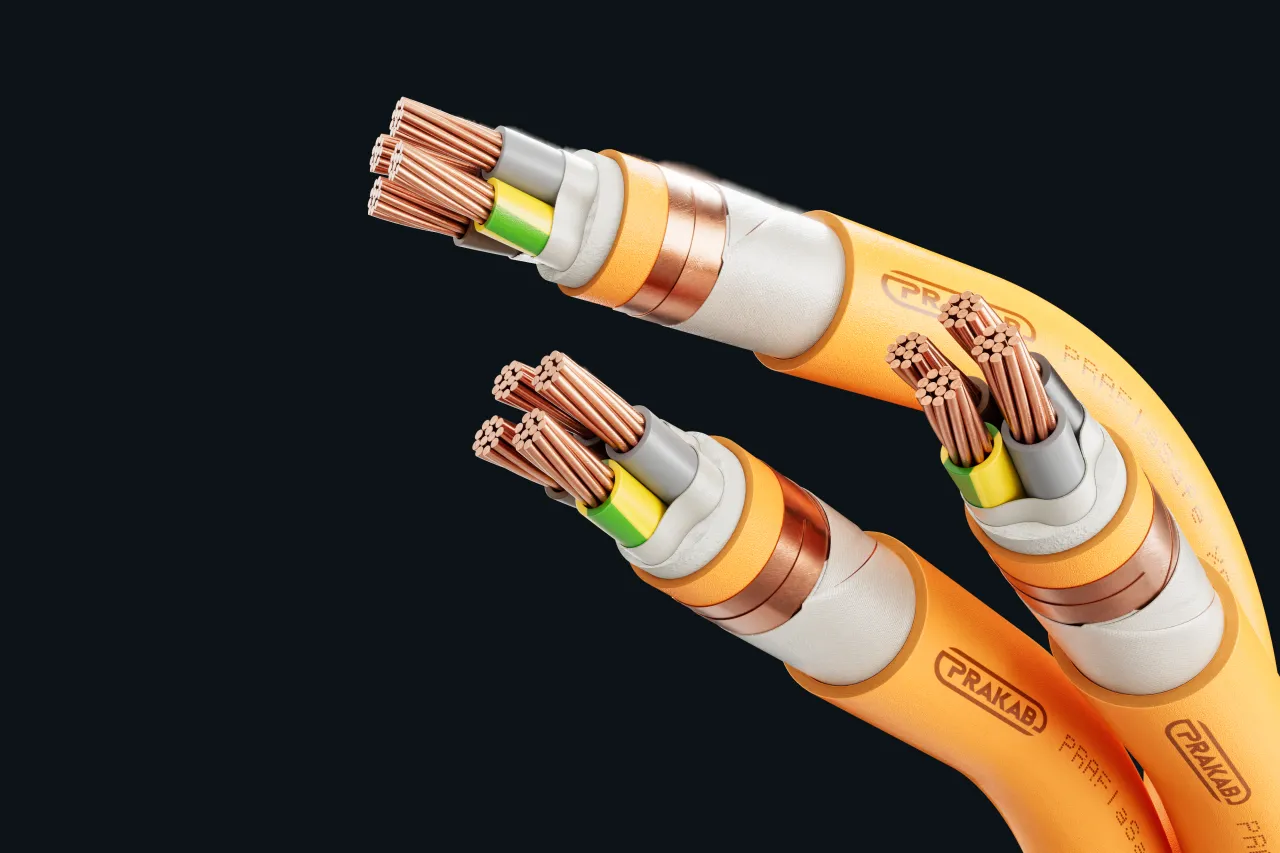

Cable image - PRAFlaSafe XC1
+
-

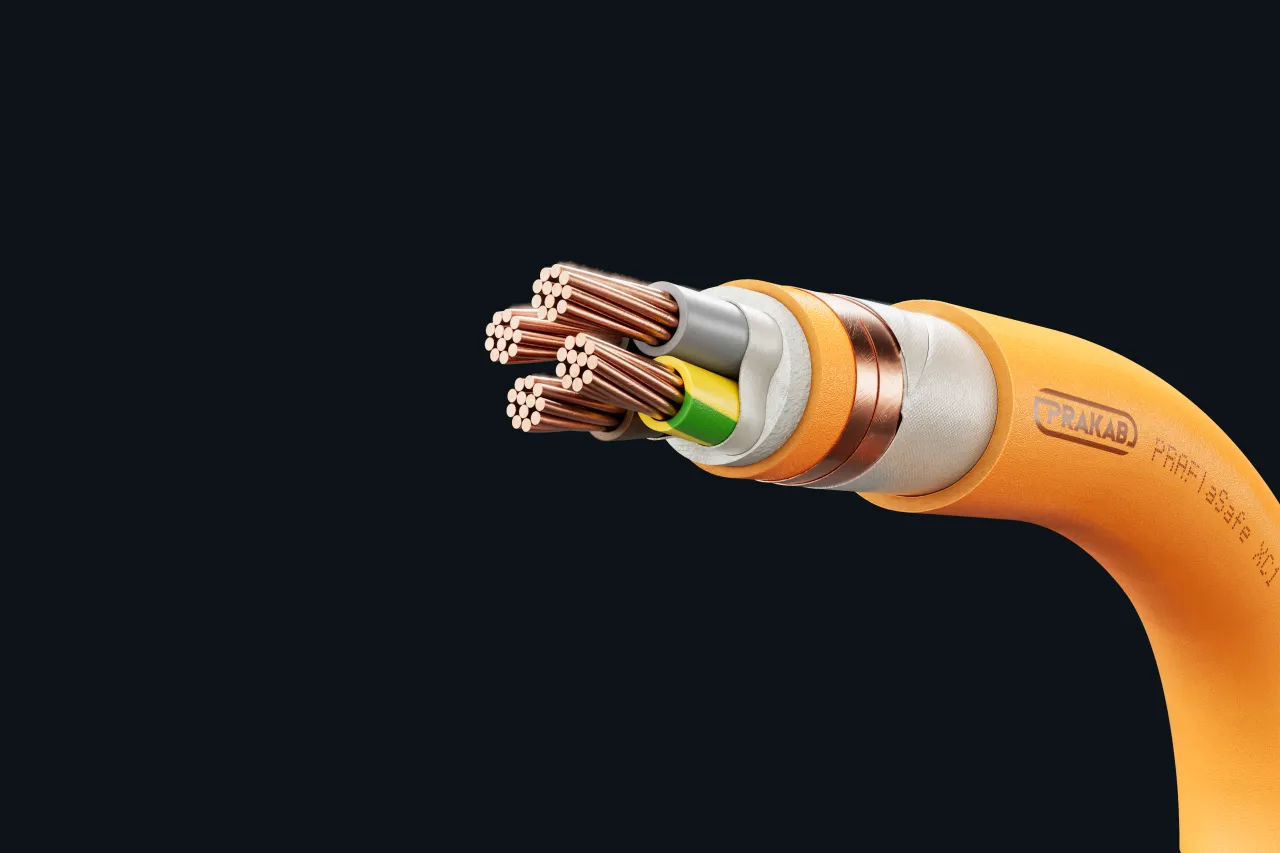

Cable image - PRAFlaSafe XC1
+
-
Cable image - PRAFlaSafe XC1
+
-

Contact us

Are you interested in this product?

Ing. Štěpán Laštůvka

Product supervisor

+420 732 912 682
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Max. conductor resistance (Ω/km)
Current rating in the air (A)
Outer diameter appr. (mm)
Total weight appr. (kg/km)
2 x 1.5 RE
12.531
28
13.7
286
3 x 1.5 RE
12.531
24
14.2
308
4 x 1.5 RE
12.531
24
15.0
348
5 x 1.5 RE
12.531
16
15.8
384
7 x 1.5 RE
12.531
16
16.8
447
12 x 1.5 RE
12.531
13
20.1
624
19 x 1.5 RE
12.531
11
22.5
808
24 x 1.5 RE
12.531
10
25.3
1001
37 x 1.5 RE
12.531
9
28.2
1290
48 x 1.5 RE
12.531
8
31.3
1587
2 x 2.5 RE
7.52
37
14.7
336
3 x 2.5 RE
7.52
32
15.2
367
4 x 2.5 RE
7.52
32
15.9
411
5 x 2.5 RE
7.52
22
17.0
468
7 x 2.5 RE
7.52
21
17.9
544
12 x 2.5 RE
7.52
18
21.6
781
19 x 2.5 RE
7.52
14
24.6
1049
24 x 2.5 RE
7.52
13
25.1
1010
37 x 2.5 RE
7.52
12
30.9
1717
48 x 2.5 RE
7.52
10
34.9
2161
2 x 4 RE
4.7
49
15.6
392
3 x 4 RE
4.7
42
16.1
437
4 x 4 RE
4.7
42
17.2
504
5 x 4 RE
4.7
28
18.2
569
7 x 4 RE
4.7
27
19.5
674
12 x 4 RE
4.7
22
23.7
1010
2 x 6 RE
3.133
62
16.8
471
3 x 6 RE
3.133
53
17.4
533
4 x 6 RE
3.133
53
18.4
613
5 x 6 RE
3.133
36
19.7
698
7 x 6 RE
3.133
36
20.9
842
1 x 10 RE
1.88
99
14.4
356
2 x 10 RE
1.88
85
18.7
621
3 x 10 RE
1.88
74
19.7
719
4 x 10 RE
1.88
74
21.0
841
5 x 10 RE
1.88
49
22.6
989
1 x 16 RE
1.175
131
15.3
432
2 x 16 RE
1.175
113
20.8
797
3 x 16 RE
1.175
98
21.7
946
4 x 16 RE
1.175
98
23.4
1137
5 x 16 RE
1.175
65
25.2
1348
1 x 25 RM
0.752
177
17.3
580
3 x 25 RM
0.752
133
26.5
1424
4 x 25 RM
0.752
133
28.6
1722
5 x 25 RM
0.752
90
30.8
2038
1 x 35 RM
0.537
217
18.6
704
3 x 35 RM
0.537
162
28.9
1799
4 x 35 RM
0.537
162
31.1
2176
5 x 35 RM
0.537
109
34.0
2613
1 x 50 RM
0.387
265
20.1
849
3 x 50 RM
0.387
197
32.3
2299
4 x 50 RM
0.387
197
35.7
2881
5 x 50 RM
0.387
133
38.9
3446
1 x 70 RM
0.268
336
22.1
1098
4 x 70 SM
0.268
250
36.2
3454
5 x 70 SM
0.268
180
39.8
4224
1 x 95 RM
0.193
415
23.8
1379
4 x 95 SM
0.193
308
40.6
4538
5 x 95 SM
0.193
308
42.5
5490

Technical changes reserved.

All figures are therefore without guarantee.
