Cables

YSLY

Download PDF

Add to inquiry

Download PDF

To inquiry

PVC control cable, unscreened

Automation and Motor Supply Cables

As flexible control and connecting cable for fixed laying and flexible applications without tensile stress and/or without guided movements. Applicable in dry, damp and wet rooms, for medium mechanical stress, but not for outdoor use.

Design

This product consists of:

  • 1
    Bare copper conductors, fine wires class 5 according to DIN EN 60228 / VDE 0295 / IEC 60228
  • 2
    Core insulation of special compound based on polyvinyl chloride (PVC)
  • 3
    Cores are stranded in layers with optimal lay-length
  • 4
    Outer sheath of special compound based on polyvinyl chloride (PVC), colour: grey (RAL 7001) or black (RAL 9005)

Technical Data

Standard: Based on VDE 0281
Test Voltage: 4000 V / 50 Hz
Rated Voltage: 300/500 V (Uo/U)
Bending radius (min.):
  • Fixed installation: 4 x Ø of cable
  • Flexible use: 15 x Ø of cable
Fire properties:
  • EN 60332-1-2: self-extinguishing and flame retardant
  • CPR classification: Eca
Core identification: Black (continuously numbered), with green/yellow ground conductor from 3 cores (JZ) or without (OZ)
Temperature range:
  • Fixed installation: -40°C up to 80°C
  • Flexible use: -5°C up to 70°C

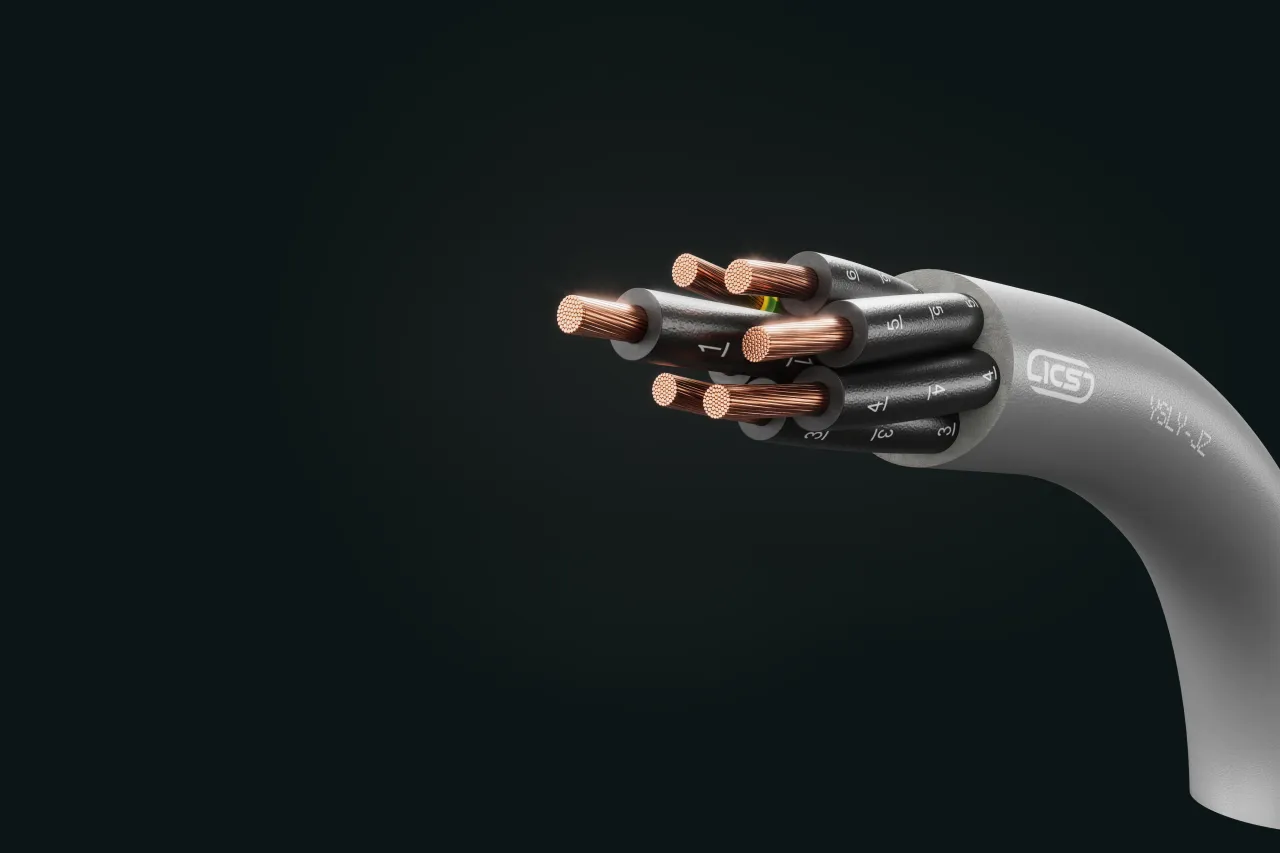

Cable image - YSLY
+
-

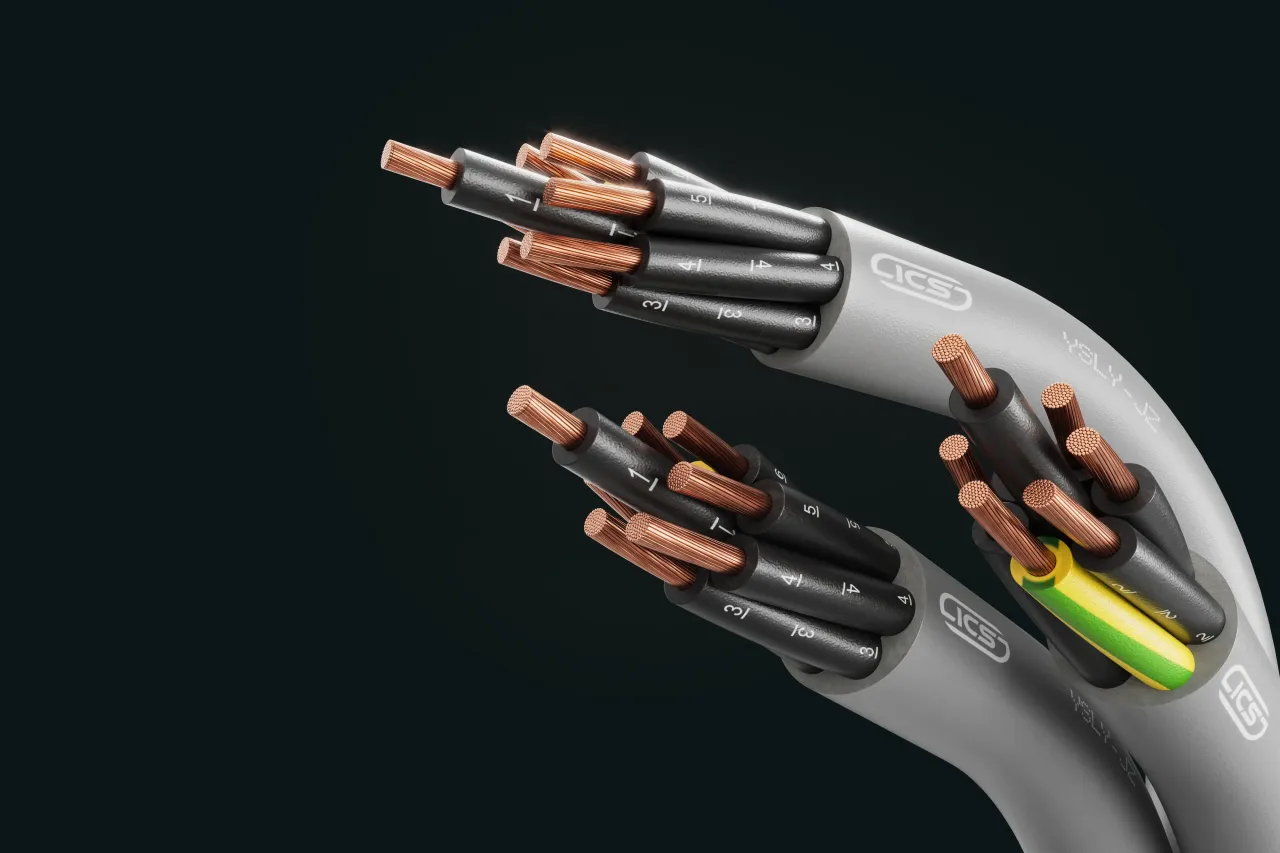

Cable image - YSLY
+
-
Cable image - YSLY
+
-

Contact us

Are you interested in this product?

Jan Pietroň

Product supervisor

+420 604 471 907
[email protected]

Options

Add to inquiry
Number of cores x nominal cross-section (mm²)
Outer diameter appr. (mm)
Cu-value (kg/km)
Total weight appr. (kg/km)
2 x 0.5
4.8
10
36
3 x 0.5
5.0
14
42
4 x 0.5
5.7
19
55
5 x 0.5
6.2
24
65
7 x 0.5
6.7
34
81
10 x 0.5
8.8
48
129
12 x 0.5
9.0
58
142
14 x 0.5
9.5
67
158
16 x 0.5
10.0
76
176
18 x 0.5
10.7
86
202
21 x 0.5
11.3
101
229
25 x 0.5
12.9
120
284
30 x 0.5
13.5
144
330
34 x 0.5
14.5
163
375
40 x 0.5
15.0
192
410
50 x 0.5
17.0
240
520
61 x 0.5
19.6
293
620
2 x 0.75
5.2
14
44
3 x 0.75
5.4
22
53
4 x 0.75
6.2
29
68
5 x 0.75
6.8
36
83
6 x 0.75
7.0
43
99
7 x 0.75
7.3
50
104
10 x 0.75
9.6
72
165
12 x 0.75
9.9
86
183
16 x 0.75
11.4
115
240
18 x 0.75
11.9
130
267
21 x 0.75
12.8
151
303
25 x 0.75
14.3
180
376
34 x 0.75
16.3
245
496
41 x 0.75
18.3
296
620
50 x 0.75
19.2
360
698
61 x 0.75
20.5
439
790
2 x 1
5.5
19
51
3 x 1
5.9
29
64
4 x 1
6.5
38
80
5 x 1
7.2
48
99
7 x 1
8.0
67
127
10 x 1
9.4
96
200
12 x 1
10.0
115
223
14 x 1
11.4
134
249
16 x 1
12.0
154
286
18 x 1
12.7
173
316
21 x 1
13.6
205
369
25 x 1
14.5
240
456
30 x 1
16.4
308
530
34 x 1
17.4
326
591
50 x 1
20.9
480
855
61 x 1
24.0
586
1050
2 x 1.5
6.3
29
69
3 x 1.5
6.6
43
84
4 x 1.5
7.3
58
105
5 x 1.5
8.2
72
132
6 x 1.5
8.5
86
158
7 x 1.5
8.9
101
168
10 x 1.5
11.6
144
263
12 x 1.5
12.0
173
294
14 x 1.5
12.8
202
336
16 x 1.5
13.5
230
377
18 x 1.5
14.4
259
426
21 x 1.5
15.2
302
488
25 x 1.5
17.5
360
612
32 x 1.5
18.5
461
700
34 x 1.5
19.7
490
795
42 x 1.5
22.2
605
999
50 x 1.5
23.6
720
1148
2 x 2.5
7.6
48
106
3 x 2.5
8.1
72
132
4 x 2.5
9.0
96
167
5 x 2.5
10.1
120
211
2 x 4
9.0
77
138
3 x 4
9.9
115
205
4 x 4
11.2
154
263
5 x 4
12.6
192
332
3 x 6
11.2
173
278
4 x 6
12.6
230
358
5 x 6
14.1
288
453
4 x 10
16.5
384
620
5 x 10
18.4
480
778
4 x 16
19.6
614
938
5 x 16
21.9
768
1178
4 x 25
27.0
960
1590
5 x 25
30.0
1200
1954
4 x 35
29.0
1344
2113
5 x 35
33.0
1680
2635
4 x 50
35.0
1920
2950

Technical changes reserved.

All figures are therefore without guarantee.
